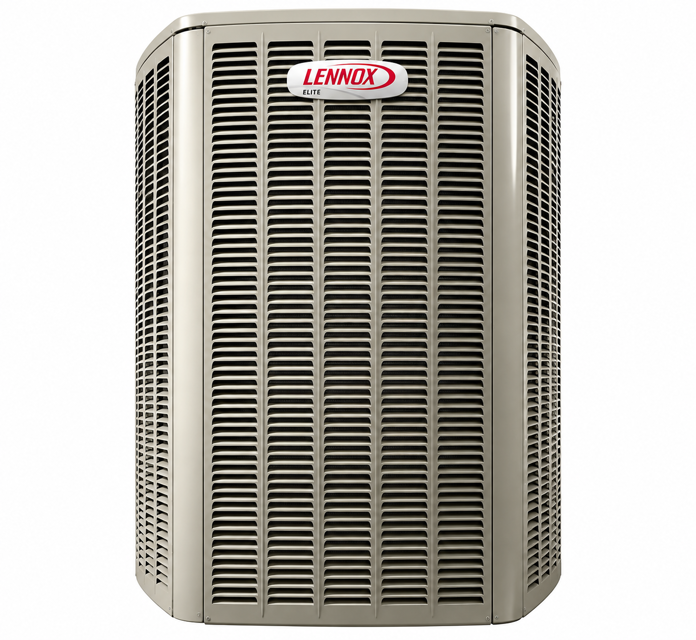

Lennox Air Conditioner EL17XC1-030-230

Turn the electrical power to unit OFF at disconnect switch

Scheduling Professional Maintenance

Contact a licensed professional HVAC technician to schedule inspection and maintenance appointments before each heating and cooling season

Check the indoor unit filter each month

Was the indoor unit filter replaced?

Check the indoor unit drain line for obstructions monthly

Ensure the EL17XC1 unit is powered off

Verify that the refrigerant piping is connected

Measure the length of refrigerant piping in feet

Calculate additional refrigerant charge for piping over 15 feet

Locate the unit charging sticker on the unit access panel

Check the current refrigerant charge level

Adjust nitrogen pressure to 150 psig (1034 kPa)

Verify refrigerant is measurable with a leak detector

Disconnect gauges from service ports

Reconnect the manifold gauge set

Inspect component wiring for loose, worn or damaged connections.

Check for any rubbing or pinching of wires.

Confirm proper voltage of outdoor unit.

Confirm proper amperage of outdoor unit.

Check cleanliness of outdoor fan.

Inspect blade condition for cracks.

Turn the electrical power to unit OFF at disconnect switch

Have you checked the indoor unit filter this month?

Does the filter need replacement?

Replace the filter if necessary

Check the indoor unit drain line for obstructions
