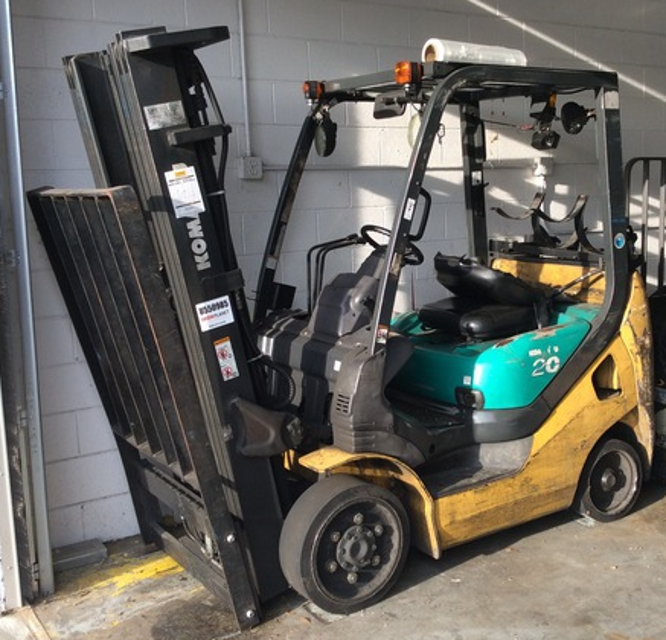

Komatsu Forklift Trucks FG20HTLS-16

CAUTION: The factory-set adjustments may not be correct for your truck.

Inspect all chains for lubrication.

Inspect all chains for any visible damage.

Inspect the main lift chain adjustment for proper tension and upright position.

Inspect the free lift chain adjustment for proper tension and carriage position.

Inspect for lubrication in the Mast upright channels.

Sign off on the mast inspection

4.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Position F/R lever in neutral, pull the parking brake lever down, and start the engine to check the following:

1. Check engine for smooth starting

2. Check engine for abnormal noise

3. Check pre-heating valve for proper functioning

4. Check acceleration pedal and control levers for smooth functioning

4.2.2 ENGINE REVOLUTION, EXHAUST EMISSION COLOR

Press accelerator pedal to check the following:

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

After each 100 hours of lift truck operation, and in addition to the daily inspection:

1. Inspect and lubricate the full length of the chains with SAE 40 wt. oil or Bowman Heavy Load Red Grease.

CAUTION: The chains must be coated with a film of lubricant at all times.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

After each 100 hours of lift truck operation, and in addition tothe daily inspection:

1. Inspect and lubricate the full length of the chains with SAE 40 wt. oil or Bowman Heavy Load Red Grease.

CAUTION: The chains must be coated with a film of lubricant at all times.

E-MT SERIES FULL FREE LIFT 3-STAGE MAST

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Perform the following at the beginning of each work shift:

1. Extend the carriage a few inches off the ground and make sure the chains are under equal tension. Refer to Section 5.6-3 for chain adjustment.

2. Extend the mast to its fullest height to make sure the mast rails and carriage extend freely without binding.

3. While the mast is extended, inspect the upright rails for proper lubrication. Refer to Section 2.4-3 for rail lubrication.

4. Make sure the internal reeving hoses (if equipped) travel evenly in the hose guides. Adjust the hose ends if required. Tighten the fittings making sure they do not twist.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

Perform the following at the beginning of each work shift:

1. Extend the carriage a few inches off the ground and make sure the chains are under equal tension. Refer to Section 5.6-3 and 5.6-4 for chain adjustment.

3.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Select dry and even surface road, drive at full speed and stop abruptly to check the following:
