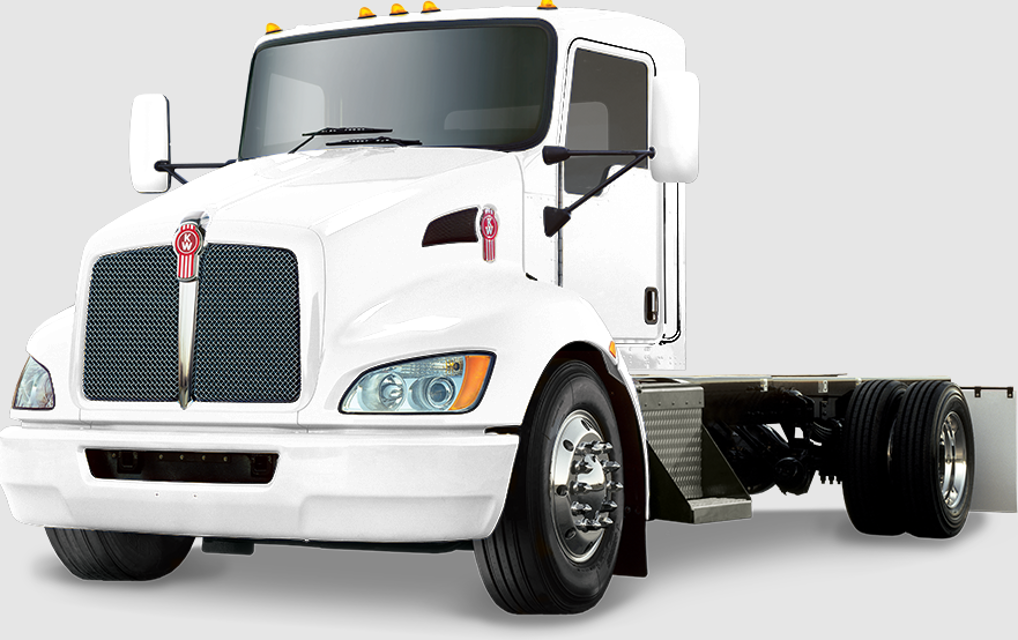

Kenworth Truck Company Truck T370

The vehicle is originally equipped with three or four batteries. Replacement batteries must meet the following specifications: maintenance-free, group 31 size, threaded stud, 12V/ 650 cold cranking ampere (CCA), and 160 minutes of reserve capacity.

The battery compartment is located on the left side of the vehicle, under the cab access steps.

Steps removed by removing 2 bolts from each step

4 bolts and washers removed from forward fairing

2 bolts (A) removed from step strut

Battery cover removed for access

Your vehicle may be equipped with Optima brand Absorbed Glass Mat (AGM) batteries located in the cab under the passenger’s seat. The glass mat in AGM batteries is designed to absorb the battery acid inside the battery that can leak or spill out in conventional batteries. This design feature allows Optima batteries to be positioned in any orientation without risk of leaking.

Engine heat, vibration, and age combine to loosen air intake connections and cause cracks in the tubing and elbows. Leaks in the intake system allow abrasive dust to enter the engine and quickly cause expensive damage.

Check all tubing, elbows, clamps supports and fasteners for condition and tightness.

Check the Charge-Air-Cooler for air leaks annually.

The air leaks can be caused by cracked tubes or header. For service see your authorized Kenworth Dealer.

CAUTION: Do not use air intake pipes and connections as a step or to pull yourself up. This could loosen the connections and open the system to unfiltered air which could damage the engine.

Sign off on the daily air intake system maintenance

See Engine Manufacturers Recommendations

Sign off on the air system maintenance

WARNING!: Do not use brake linings with a thickness below the specified minimum. Such linings will have lining rivets exposed that can damage the brake drum and reduce brake efficiency, which could cause an accident or system failure. Failure to comply may result in death, personal injury, equipment or property damage.

Brake linings inspected by a qualified mechanic at an authorized Kenworth Dealer for wear

See Table 9, Maintenance Schedule on page 5-18. In severe service applications inspect the linings more frequently.

Select your vehicle's service package

Brake service requirements met according to service package

Sign off on the brake linings inspection
