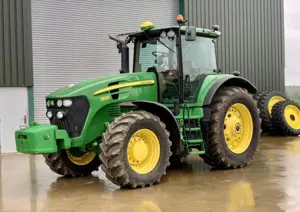

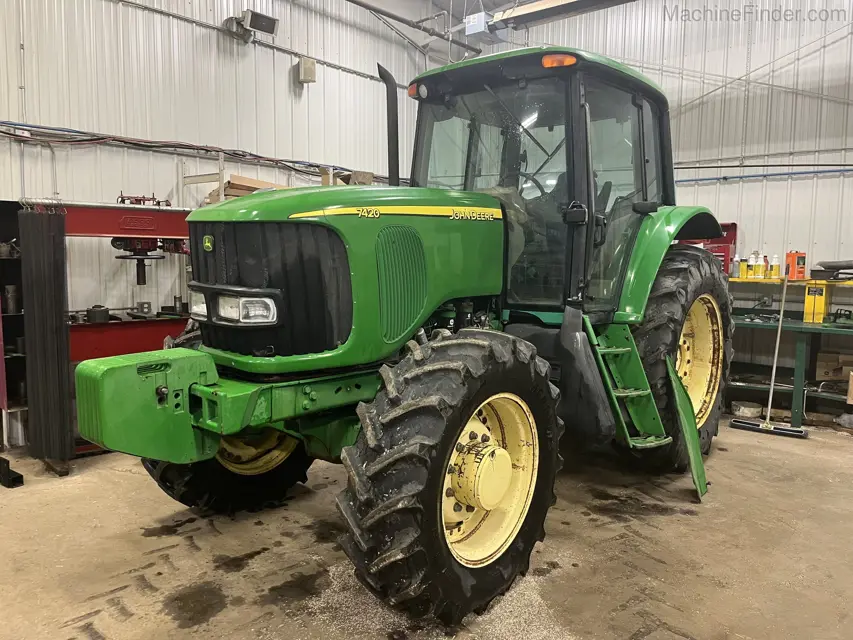

The John Deere Tractor 7420 is a robust agricultural machine designed for high performance and efficiency. This versatile tractor model is ideal for various farming tasks, ensuring reliability and productivity in the field. With its powerful engine and advanced features, the 7420 meets the demands of modern agriculture.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 7420

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 7420

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 7420

Integrate maintenance plans directly into your work orders in MaintainX.

10 Hourly / Daily Maintenance

Check Engine Oil Level

Check Engine Coolant Level

Check Transmission/Hydraulic Oil Level

Park tractor on level surface.

Lower rear hitch and front-mounted implements (if equipped).

7220 and 7320 Tractors

Unscrew dipstick (A), remove it and wipe it clean.

Screw-in dipstick fully, remove it and check oil level.

Oil level should be between marks on the dipstick. Add oil at filler neck as necessary.

Run this procedure

1000 Hourly Maintenance

Change IVT Transmission/Hydraulic System Oil

Start engine and operate several hydraulic functions to heat oil.

Park tractor on level surface. Lower rear hitch and front-mounted implements (if equipped).

Stop the engine and remove the key.

Remove drain plugs (A).

Replace transmission/hydraulic oil filters (B).

Replace seals and tighten drain screws to 50 Nom (35 lb-ft).

Add transmission/hydraulic oil to the transmission case.

Have John Deere Dealer Check Cab Suspension Accumulators

Run this procedure

As required Maintenance

Air Conditioning System Check

Radiator Screen Clean

Radiator Screen Maintenance

Battery Check

Braking System Bleed

Starter System Check

Fan Belt Inspection/Replacement

Fuses Inspection/Replacement

Fuel System Bleed

Run this procedure

250 Hourly Maintenance

Lubricate 2WD Adjustable Front Axle Components

Lubricate MFWD Axle and Drive Shaft

Check Oil Level in Axle Housing and final Drives

Check Oil Level in Rear Drop-Axle, Hi-Crop Tractors (7420 only)

Lubricate Rockshaft and Hitch Components

Check Neutral Start Circuit

Steps to check Neutral Start Circuit

Tractors equipped with IVT

Steps to check IVT

Run this procedure

750 Hourly Maintenance

Change PowrQuad Plus Transmission/Hydraulic Oil Filter

Unscrew filter elements

Coat sealing rings of new filter elements with grease or oil and screw-in filter elements

Used original John Deere filter elements only?

Change Front PTO Oil Filter

Check Seat Belt for Signs of Wear

Check Engine Speeds

Sign off on the 750 Hourly Maintenance

Run this procedure
