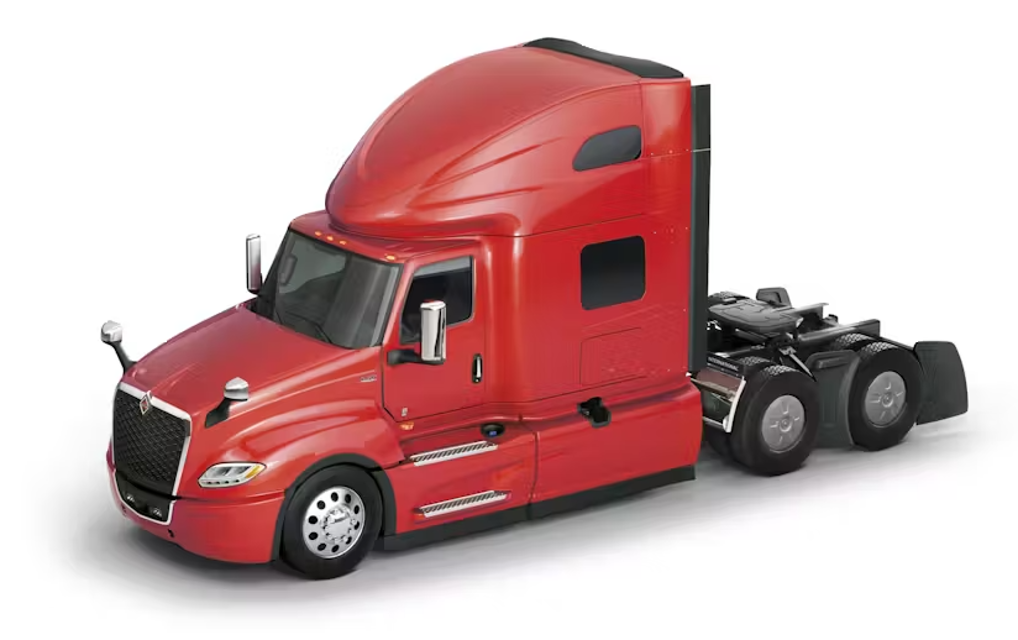

INTERNATIONAL Truck RH

Parking lights and hazard lights turned on

Hood latches unhooked, hood raised, optional tilt-away bumper unlatched and lowered

Checked under the vehicle for oil, fuel, or other fluid leaks, or other signs of damage

Used pull cables or opened drain cocks to allow air tanks to expel any existing water. Released pull cables or closed drain cocks

Wheel chocks installed on tractor and trailer, if attached

Engine started and air pressure built up to normal operating pressure of 115 - 130 psi (793 - 896 kPa)

Place the ignition key in the ON or ACC position, place the transmission in Neutral (N), and set the parking brake.

Press the WORK LIGHT switch for approximately two seconds before releasing to activate this feature.

The exterior light check will now cycle all vehicle lights except the backup light(s). The test flashes the exterior lights ON and OFF in three, 2-second cycles.

Walk around vehicle and inspect illumination of lights.

To cancel this feature, do one of the following: press the brake pedal, manually turn on any external light, turn the key to OFF, or release the parking brake. The feature will automatically cancel approximately 10 minutes after activation if not deactivated by the operator.

To check the backup lights, there need to be two people. Keep the engine running. Depress the clutch (if applicable) and select reverse while the second person observes backup light operation.

Sign off on the exterior lights check

Trailer coupling cords: Inspect air lines and electrical cord for cuts, chafing, damage, and proper security. Check air lines for audible air leaks.

Work light(s): Check operation, and clean as needed.

Sliding fifth wheel (optional): Check for loose or missing pins in the slide mechanism. If air powered, check for air leaks. Make sure that fifth wheel is not so far forward that tractor frame or mud flaps will strike trailer landing gear during turns.

Lubrication: Make sure that top surface (face) of the fifth wheel has a coat of grease.

Mounting bolts and release handle: Look for loose or missing mounting brackets, clamps, bolts or nuts. All locking pins must be in place and free of damage. Ensure that release handle is in the engaged position and the safety latch is functioning and free of damage.

Deck plate and access steps: Check to ensure that the deck plate and steps are clean, securely bolted in place, and clear of loose objects.

Power steering fluid level between COLD and HOT (as applicable) MIN and MAX marks

Air cleaner element, housing, and hoses for loose connections or damage

Air filter restriction gauge for restriction reading

Oil level between the MAX and ADD marks

Fuel / water separator sight globe condition

Fuel level at top of globe (if Davco® equipped)

Presence of water in fuel / water separator and drain as necessary

Fuel / water separator for leaks

Radiator and charge air cooler for loose mounting and damage

Wipers: Check windshield wiper arms for proper spring tension and wiper blades for damage.

Windshield: Check for damage to windshield and clean if dirty.

Camera: Inspect for damage and secure mounting.

Cab structure: Check body panels such as doors, fairings, air shield, sunshade, and cab extenders for signs of breaks or damage. Check condition of cab mounting brackets and tilt hood latches.

Fuel tank(s): Check to see that the fuel tank(s) and cap(s) are secured and make sure there are no leaks or damage at the tank(s) or fuel lines.

Diesel Exhaust Fluid (DEF) tank: Check to see that the DEF tank and cap are secured and make sure there are no leaks or damage at the tank, DEF lines, or coolant lines.

Battery box: Inspect for damage and secure mounting of battery box. Remove battery box cover.

Batteries and cables: Check that batteries are secured and cases are not broken or leaking. Ensure cables are free from damage. Tops of batteries and terminals must be clean and free from foreign material. Replace battery box cover.
