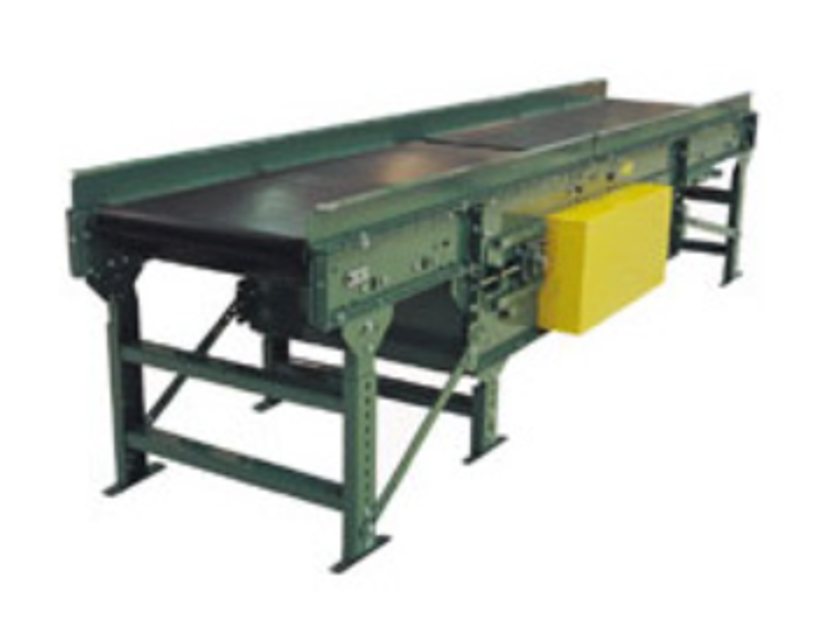

Hytrol Belt Conveyor GAPPER-D

Warning: This procedure requires trained personnel with PPE!

Drive Chain lubrication serves several purposes including: Protecting against wear of the pin-bushing joint, Lubricating chain-sprocket contact surfaces, Preventing rust or corrosion

Enter the hours of operation since last lubrication

Enter the date of last lubrication

Is the drive chain sufficiently lubricated?

If not, lubricate with a good grade of non-detergent petroleum or synthetic lubricant (i.e., Mobile 1 Synthetic).

For best results, always use a brush to generously lubricate the chain.

Select the operating conditions

For harsh conditions, it is best to lubricate more frequently. Develop a custom lubrication schedule for your specific application.

Loosen belt by loosening the take-up bolt weldment on the spring take-up until belt is no longer in tension.

Remove tail pulleys, drive pulley and slider pan.

Upload a photo of the new belt installed as shown in Figure 6A.

Slide belt over tail pulleys. Belt is installed on top of Auto Belt Tracker and over Take-up pulley.

Reinstall drive pulley being careful belt is in proper position.

Adjust belt tension by adjusting the take-up bolt weldment on the spring take-up. See Belt Tension section.

Sign off on the belt replacement

Warning: This procedure requires trained personnel with PPE!

Set screws loosened and adjusted

Enter the desired chain tension

Chain guard replaced without interfering with drive
