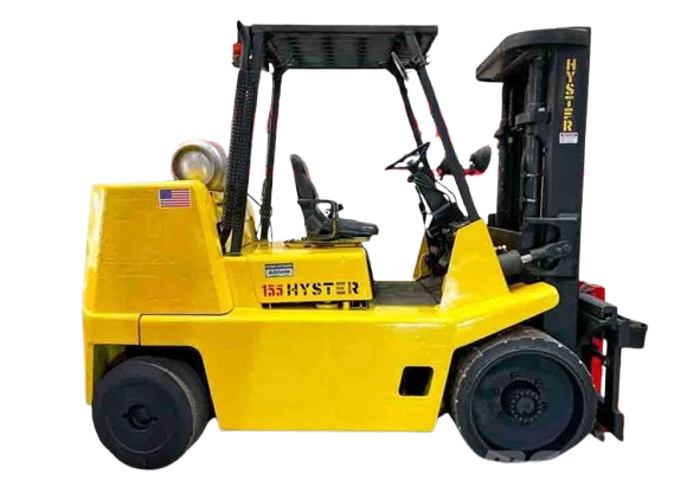

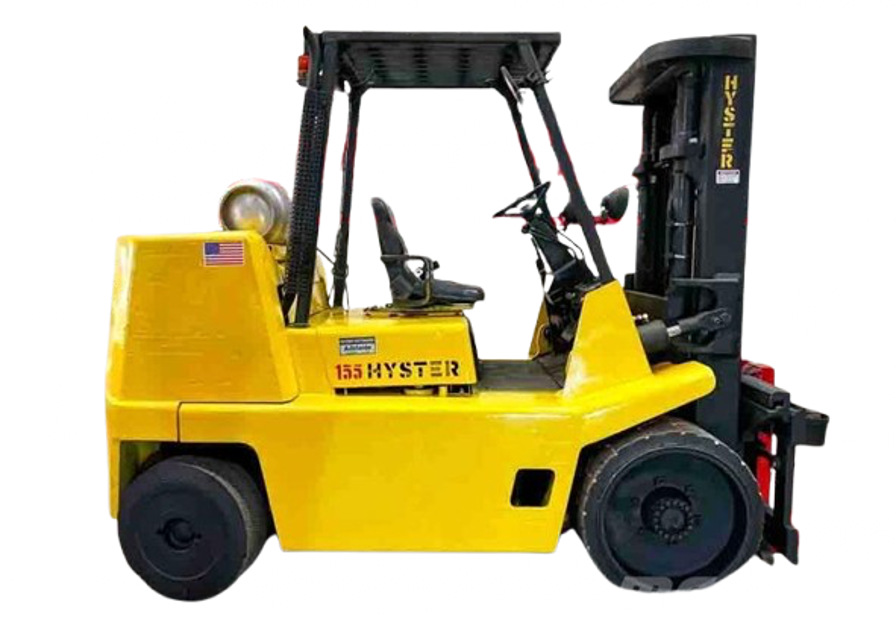

The Hyster-Yale Forklift S135XL is a robust industrial forklift designed for heavy-duty lifting and material handling. Known for its reliability and efficiency, this model is ideal for various warehouse and construction applications, ensuring optimal performance in demanding environments.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Hyster-Yale Forklift S135XL

Create an account to install this asset package.

Maintenance Plans for Hyster-Yale Forklift Model S135XL

Integrate maintenance plans directly into your work orders in MaintainX.

1000 Hourly / 6 Monthly Forklift Maintenance

Change cooling system GM V-6 EPA Compliant Engine

Check valve adjustment GM V-6

Check valve adjustment diesel, inlet valves

Check valve adjustment diesel, exhaust valves

Check GM V-6 timing

Check diesel timing

Lubricate parking brake

Lubricate clutch, brake and inching/brake pedals

Lubricate pedals, levers, linkages, cables, hinges, seat rails

Run this procedure

2000 Hourly / 1 Yearly Oil Change

Warning: This procedure requires trained personnel with PPE!

Hydraulic system oil changed?

Speed reducer and differential oil changed for single speed powershift?

Powershift transmission oil changed for single speed powershift?

Sign off on the oil change

Run this procedure

250 Hourly / 6 Weekly Mast Lubrication

Lubricate mast side shift carriage rollers

Lubricate mast sliding surfaces and load roller surfaces

Lubricate mast fork guides

Lubricate mast pivots

Sign off on the mast lubrication

Run this procedure

500 Hourly / 3 Monthly Forklift Maintenance

Change diesel engine oil Perkins 1004-42

Change diesel engine oil Perkins 1104C-44

Check crankcase breather operation Perkins 1004-42, Perkins 1104C-44

Change diesel engine oil filter Perkins 1004-42

Change diesel engine oil filter Perkins 1104C-44

Check PCV Valve GM V-6;

Run this procedure

350 Hourly / 2 Monthly Forklift Maintenance

Lubricate steering axle spindles

Clean debris from radiator core

Clean or replace air filter

Check brake fluid

Check engine idle speed GM V-6

Check engine idle speed diesel

Check engine governor speed GM V-6

Check engine governor speed diesel

Adjust clutch, brake and inching/brake pedals

Run this procedure

Parts for Hyster-Yale Forklift S135XL

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Oil Filter

336831

Silicon Spray

328388

Oil Filter

336831

Silicon Spray

328388

Oil Filter

336831

Silicon Spray

328388
