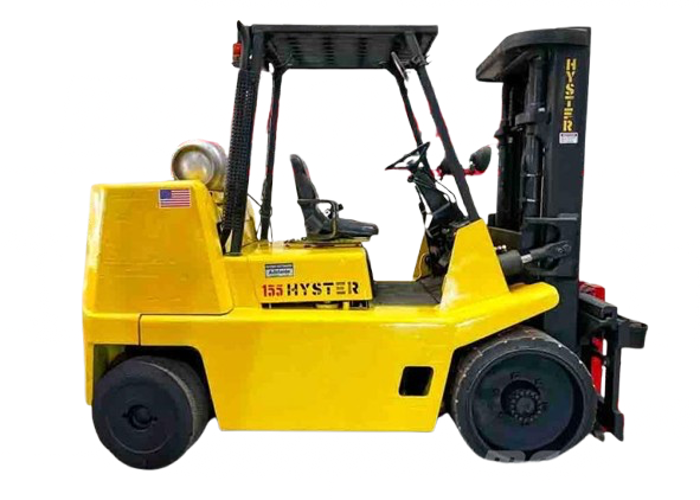

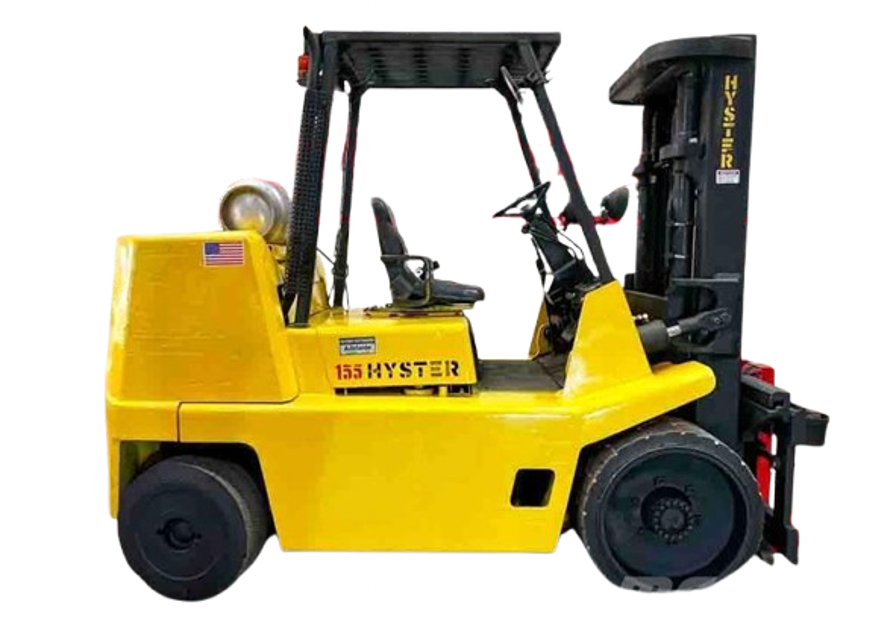

Hyster-Yale Forklift S120XLS
Need answers fast?
Explore the manual using AI.
The Hyster-Yale Forklift S120XLS is a robust industrial forklift designed for heavy-duty applications. Known for its reliability and efficiency, this model offers exceptional lifting capabilities and maneuverability in various environments, making it an ideal choice for warehouses and manufacturing facilities.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Hyster-Yale Forklift S120XLS
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Forklift Model S120XLS
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hourly / 6 Weekly Mast Lubrication
Lubricate mast side shift carriage rollers
Lubricate mast sliding surfaces and load roller surfaces
Lubricate mast fork guides
Lubricate mast pivots
Sign off on the mast lubrication
2000 Hourly / 1 Yearly Filter Change
Change hydraulic oil filter
Change air filter element GM V-6 EPA Compliant Engine
Change gasoline fuel filter
Change LPG fuel filter
Sign off on the filter change
350 Hourly / 2 Monthly Forklift Maintenance
Lubricate steering axle spindles
Clean debris from radiator core
Clean or replace air filter
Check brake fluid
Check engine idle speed GM V-6
Check engine idle speed diesel
Check engine governor speed GM V-6
Check engine governor speed diesel
Adjust clutch, brake and inching/brake pedals
500 Hourly / 3 Monthly Forklift Maintenance
Change diesel engine oil Perkins 1004-42
Change diesel engine oil Perkins 1104C-44
Check crankcase breather operation Perkins 1004-42, Perkins 1104C-44
Change diesel engine oil filter Perkins 1004-42
Change diesel engine oil filter Perkins 1104C-44
Check PCV Valve GM V-6;
2000 Hourly / 1 Yearly Oil Change
Hydraulic system oil changed
Speed reducer and differential oil changed for single speed powershift
Powershift transmission oil changed for single speed powershift
Sign off on the oil change
Parts for Hyster-Yale Forklift S120XLS
Access the parts list for your equipment in MaintainX.
Silicon Spray
328388
Oil Filter
336831
Silicon Spray
328388
Oil Filter
336831
Silicon Spray
328388
Oil Filter
336831
