Hyster-Yale Hyster-Yale Forklift H155XL2 H155XL2
Need answers fast?
Explore the manual using AI.

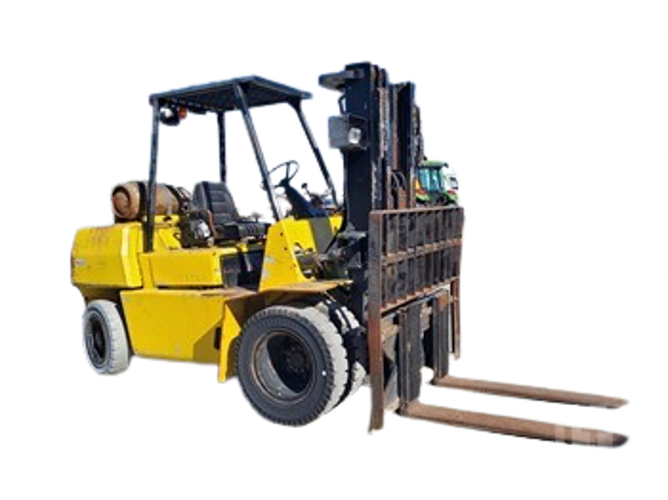

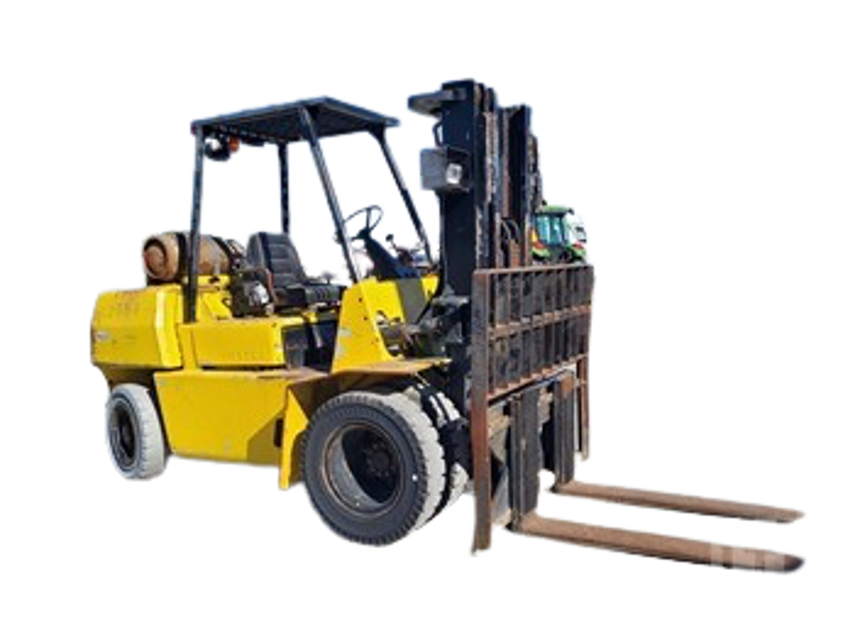

The Hyster-Yale Forklift H155XL2 is a robust industrial forklift designed for heavy-duty applications. Known for its reliability and performance, this model excels in material handling tasks, making it an essential asset for warehouses and manufacturing facilities. Its advanced features ensure optimal productivity and safety in demanding environments.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Hyster-Yale Hyster-Yale Forklift H155XL2 H155XL2
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Hyster-Yale Forklift H155XL2 Model H155XL2
Integrate maintenance plans directly into your work orders in MaintainX.
1000 Hourly / 6 Monthly Forklift Maintenance
- Replace cooling system GM V--6 EPA Compliant Engine
- Replace final diesel fuel filter
- Replace spark plugs
- Check PCV Valve
- Check timing of the engines
- Check engine valve adjustments
- Check manual transmission, speed reducer and differential oil
- Check single speed powershift transmission
- Replace Fule filter
6 Weekly / 250 Hourly Forklift Maintenance
Replace Engine Oil GM V-6
Lubricate Lift Chains
Lubricate Transmission drive Shaft
Lubricate hydraulic pump drive shaft
Check air filter GM V--6 EPA Compliant Engine
Replace Engine Oil Filter GM V-6
Check crankcase breather GM V-6
Sign off on the forklift maintenance
350 Hourly / 2 Monthly Forklift Maintenance
Diesel Engine oil replaced
Debris cleaned from radiator core
Condition and operation of the mast, carriage and lift chains checked
Forks condition checked
Condition of the lift chains checked
Air filter cleaned or replaced
NOTE! Very dirty conditions require daily check and cleaning
Brake fluid checked
Clutch, brake and inching /brake pedals adjusted as required
500 Hourly / 3 Monthly Forklift Maintenance
- Replace diesel engine oil (Perkins 1004-42, Perkins 1104C-44)
- Replace diesel engine oil filter (Perkins 1004-42, Perkins 1104C-44)
- Check crankcase breather for diesel engine (Perkins 1004-42, Perkins 1104C-44);
8 Hourly / 1 Daily Forklift Check
Check Hydraulic Oil Level of manual transmission forklift
Check Hydraulic Oil Level of powershift transmission forklift
Check engine oil level
Check diesel engine oil PERKINS 4.2482 level
Check diesel engine oil PERKINS 1004-42 level
Check diesel engine oil PERKINS 1104C-44 level
Check powershift transmission oil level
Check fuel tank level
Check the cooling system
Parts for Hyster-Yale Hyster-Yale Forklift H155XL2 H155XL2
Access the parts list for your equipment in MaintainX.
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
