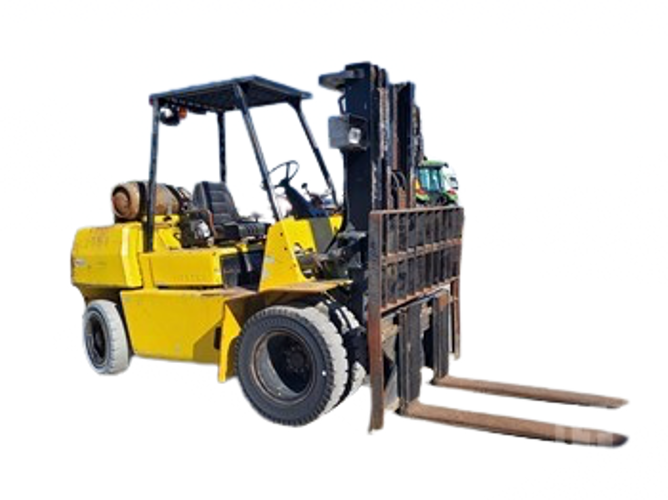

The Hyster-Yale Forklift H135XL is a robust industrial forklift designed for heavy-duty applications. Known for its reliability and efficiency, this model excels in material handling tasks, making it an ideal choice for warehouses and manufacturing facilities. Experience superior performance with the H135XL's advanced features and durable construction.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

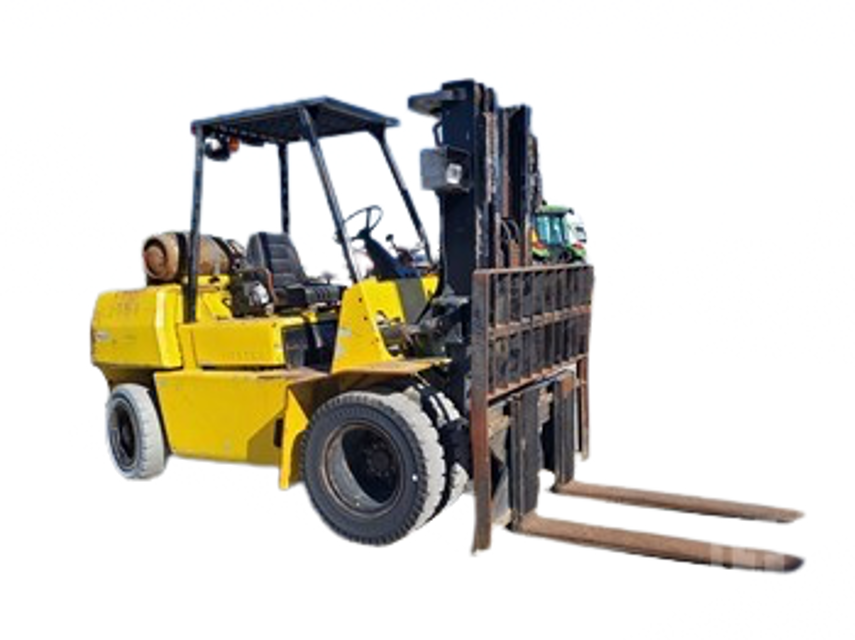

Hyster-Yale Forklift H135XL
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Forklift Model H135XL
Integrate maintenance plans directly into your work orders in MaintainX.
6 Weekly / 250 Hourly Forklift Maintenance
Replace Engine Oil GM V-6
Lubricate Lift Chains
Lubricate Transmission drive Shaft
Lubricate hydraulic pump drive shaft
Check air filter GM V--6 EPA Compliant Engine
Replace Engine Oil Filter GM V-6
Check crankcase breather GM V-6
Sign off on the forklift maintenance
1000 Hourly / 6 Monthly Forklift Lubrication
Lubricate parking brakes
Lubricate clutch, brake and inching/brake pedals
Lubricate pedals, levers, linkages, cables, hinges, seat rails
Sign off on the forklift lubrication
2000 Hourly / 1 Yearly Cooling System Replacement
- Replace Cooling system gasoline/LPG
- Replace Cooling system Diesel, Perkins 4.2482
- Replace Cooling system Diesel, Perkins 1004-42 and 1104C-44
- Replace Cooling system GM V-6 EPA Compliant Engine;
8 Hourly / 1 Daily Forklift Check
Hydraulic Oil Level of manual transmission forklift
Hydraulic Oil Level of powershift transmission forklift
Engine oil level
Diesel engine oil PERKINS 4.2482 level
Diesel engine oil PERKINS 1004-42 level
Diesel engine oil PERKINS 1104C-44 level
Powershift transmission oil level
Fuel tank level
Cooling system check
350 Hourly / 2 Monthly Engine Adjustment
- Adjust Engine idle speed GM V-6 from 625 to 675 rpm
- Adjust Engine idle speed (diesel) GM V-6 from 725 to 775 rpm
- Adjust Engine governed speed GM V-6 from 2400 to 2500 rpm
- Adjust Engine governed speed (diesel) GM V-6 from 2400 to 2500 rpm;
Parts for Hyster-Yale Forklift H135XL
Access the parts list for your equipment in MaintainX.
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
