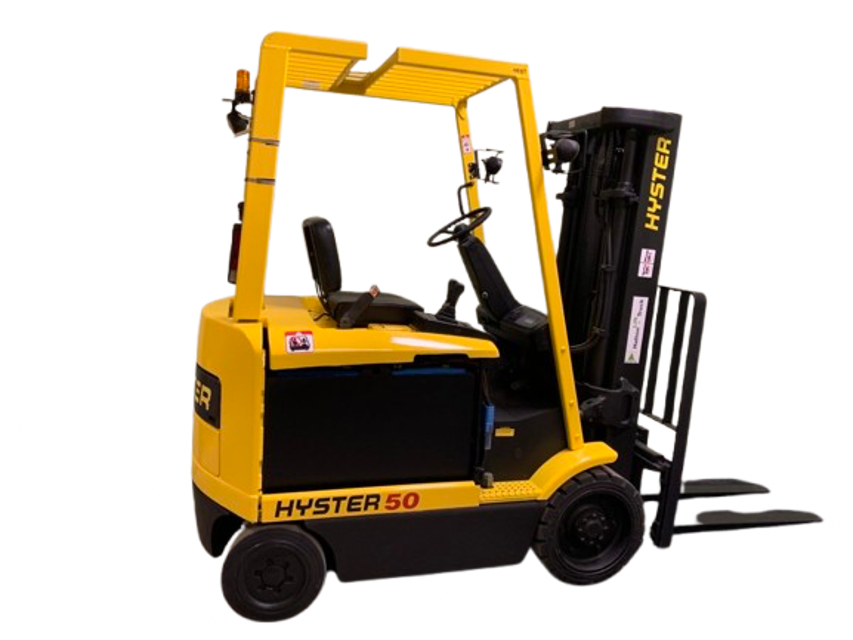

Hyster-Yale Forklift E65XM2

Inspect the lower mounting hooks for wear. Replace the hooks if they are worn beyond the wear limit. The wear limit clearance range is 0.8 mm (1/32 in.) minimum and 1.6 mm (1/16 in.) maximum

Clean and inspect the carriage bars for damage and smoothness. Ensure the bars are parallel and the ends are flush

Clean the bearing areas. Inspect the sideshift bearings for wear as follows

Remove the upper bearings from the upper apron. If either upper bearing is worn to less than 2.5 mm (3/32 in.) thickness, replace both upper bearings by driving the upper bearings from the upper apron

Remove the lower bearings from the lower carriage bar. If either lower bearing is worn to less than 2.5 mm (3/32 in.) thickness, replace both lower bearings by prying the lower bearings from the lower carriage bar

Inspect the sideshift cylinder. Replace the entire cylinder assembly if a cylinder rod is bent or scored or if there is damage on the outside of the cylinder shell that could impair performance or cause leaks under pressure;
