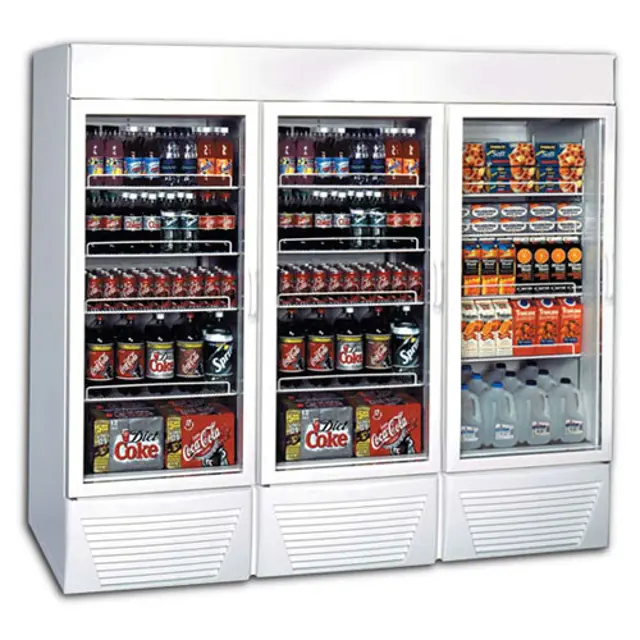

Hussmann Merchandiser With Hinged Doors ARL-1350

Warning: Ensure the thermostat is in the 'OFF' position before starting the procedure.

Is the evaporator fan motor energized?

If the fan motor is energized, open the door or disconnect the unit from the main power source.

Fasteners removed to lower the evaporator housing for cleaning and/or service?

Note: Evaporator fan will cycle 'OFF' during defrost cycle.

Evaporator fan will delay approximately 5 to 10 minutes after each defrost cycle and initial start-up on Low Temperature Models (ARL's).

Sign off on the evaporator housing maintenance

The air cooled condenser should be cleaned regularly. A dirty condenser restricts air flow, causing decreased refrigeration efficiency. (Clean every month or as required).

With main power supply disconnected, remove louver grill from front of lower cabinet. Most dirt will collect on the air intake side of the condenser. This is opposite the fan motor.

Use a bristle brush to loosen the dust and dirt and remove with a vacuum cleaner. When cleaning condenser line beware of fin edges as they are sharp.

If the merchandiser is located in an area susceptible to grease collecting on the condenser, scrub with a solution of warm water and detergent. Care should be taken to keep solution away from wiring and electrical components.

Take the fan guard out for fan blades and condenser shroud cleaning, then re-install the fan guard (optional).

Check for loose items before replacing panel.

Sign off on the condenser cleaning

Warning: Always disconnect unit from main power source before servicing or cleaning

Cabinet disconnected from main power source

Cabinet Surfaces (Interior and Exterior)

Cabinet cleaned with a mild solution of soap and warm water

Used soft cloth or sponge for cleaning?

Avoided caustic soap, abrasive cleaner, or steel wool scouring pads?

Sign off on the merchandiser cleaning
