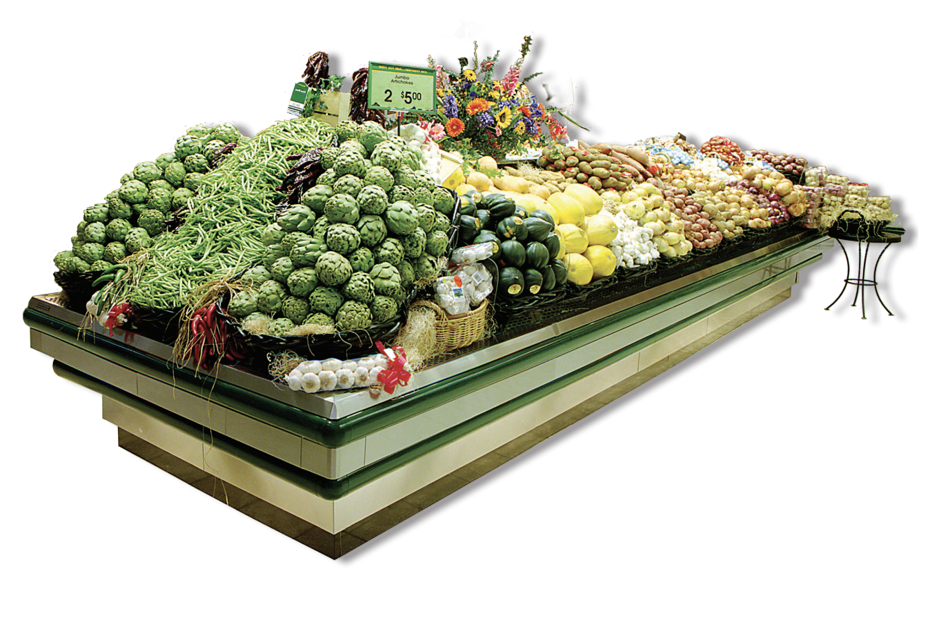

Hussmann Island Produce DSI-03

Warning: Shut off fan during cleaning process

Cleaning Precautions: Do not use high pressure water hoses, do not introduce water faster than waste outlet can drain, never introduce water on self contained unit with an evaporator pan, never use a cleaning or sanitizing solution that has an oil base or an ammonia base.

Cleaning solution is not oil or ammonia based?

Interior bottom cleaned with soap or detergent based cleaners?

Sanitizing solution used according to manufacturer's directions?

All surfaces scrubbed thoroughly with soap and hot water?

DANGER! BEFORE SERVICING ALWAYS DISCONNECT ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY ELECTRICAL COMPONENT. This includes (but not limited to) Fans, Heaters Thermostats, and Lights.

• Fluorescent lamps are furnished with a shatterproof protective coating. The same type of lamp with protective coating must be used if replaced.

• Please note: T-5 lights must be turned off and on after bulb replacement

3. Evaporator Fans • The evaporator fans are located at the center front of these merchandisers directly beneath the display pans. Should fans or blades need servicing, always replace fan blades with the raised embossed side of the blade TOWARD THE MOTOR.

• The copper coils used in Hussmann merchandisers may be repaired in the field. Materials are available from local refrigeration wholesalers.

• Hussmann recommends using #15 Sil-Fos for repairs.;

Things that can break down stainless steel’s passivity layer and allow corrosion

Are there any visible scratches on the steel's surface?

Are there any hard water spots or deposits on the steel?

Are there any signs of corrosion from chlorides?

Steps to prevent stainless steel rust
