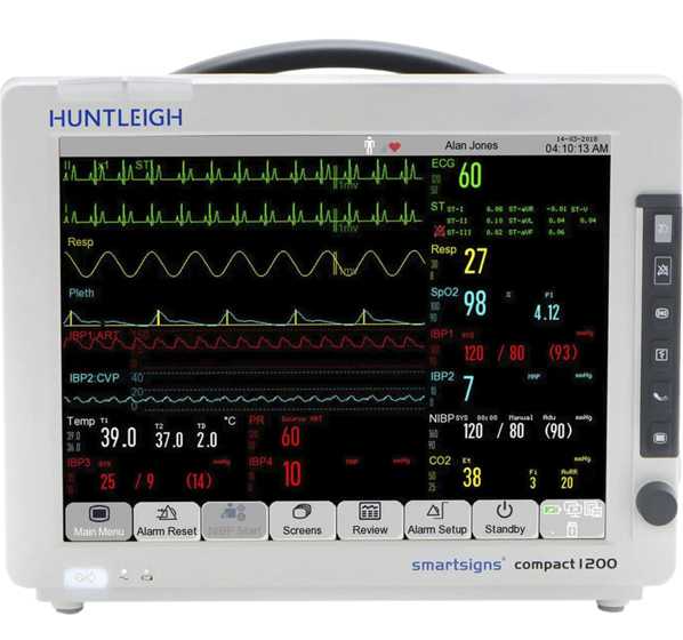

Huntleigh Healthcare Multi-Parameter Patient Monitor SC1200

Ensure all instructions in the Maintenance section are followed carefully

Verify that servicing is not performed while the unit is in use

Confirm that all maintenance is performed by qualified engineers approved by Huntleigh Healthcare Ltd.

Use the SC1200/SC1500 Service Manual (order part number 782557) for maintenance and service of repairable parts

Ensure all instructions in the Maintenance section are followed carefully

Verify that servicing is not performed while the unit is in use

Integration into Hospital Routine

Confirm SC1200/SC1500 is adopted into the hospital routine maintenance policy

Conduct maintenance in line with the Huntleigh SC1200/SC1500 service manual

Technical Maintenance and Support

Refer to your Service department for details of technical maintenance and support

WARNING: It is very important that all instructions in the Maintenance section are followed carefully.

WARNING: Servicing cannot be performed while the unit is in use.

Check the touch screen for scratches and cracks that may prevent normal use or impair the visibility of the display.

Check that any external modules are connected securely to the device and that they can be removed with ease.

Check the device casing for cracks, deformation, and any signs of fluid ingress or leakage.

Check the installation or location meets the environmental requirements and ingress protection.

Disconnect the monitor from the AC power supply

Remove all sensors from the monitor

Use a soft cloth dampened with a recommended cleaner to wipe the housing and display

Use a soft dry cloth to remove any residual detergent or cleaner

Allow the monitor to dry in a well-ventilated area

Do not squeeze the rubber hose on the cuff.

Do not allow fluid to pass into the bladder during the cleaning process.

The single use cuff may be cleaned with soap for infection control purposes.

Long term use of disinfectants may result in discolouration of the cuff.

Remove the internal bladder from the external cuff.
