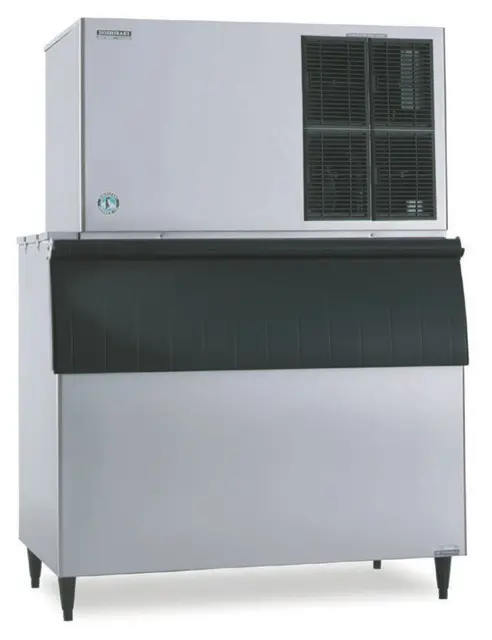

Hoshizaki Stackable Crescent Cuber KM-1300SAH

IMPORTANT: This icemaker must be maintained individually, referring to the instruction manual and labels provided with the icemaker.

Check the air filters for clogs.

If the filters are clogged, use warm water and a neutral cleaner to wash the filters.

Sign off on the air filters check

IMPORTANT: This icemaker must be maintained individually, referring to the instruction manual and labels provided with the icemaker.

Hands washed before removing ice?

Used the plastic scoop provided?

Is the storage bin used for ice only?

Cleaned the bin liner using a neutral cleaner?

Sign off on the cleaning procedure

2. Cleaning and Sanitizing Procedures

Ensure all components, fasteners and thumbscrews are securely in place after any maintenance or cleaning is done to the equipment.

1. HOSHIZAKI recommends cleaning this unit at least once a year. More frequent cleaning, however, may be required in some existing water conditions.

2. To prevent injury to individuals and damage to the icemaker, do not use ammonia type cleaners.

3. Always wear liquid-proof gloves to prevent the cleaning and sanitizing solutions from coming into contact with skin.

1. The cleaning valve is used to allow solution flow to the inside of the evaporator during the cleaning and sanitizing operation. It should be closed for all icemaking operation. The compressor will not operate unless this valve is completely closed.

This icemaker must be maintained individually, referring to the instruction manual and labels provided with the icemaker.

Condenser (Except water-cooled model)

Check the condenser once a year, and clean if required by using a brush or vacuum cleaner.

More frequent cleaning may be required depending on the location of the icemaker. Is more frequent cleaning required?

Sign off on the condenser check

This icemaker must be maintained individually, referring to the instruction manual and labels provided with the icemaker.

To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up.;
