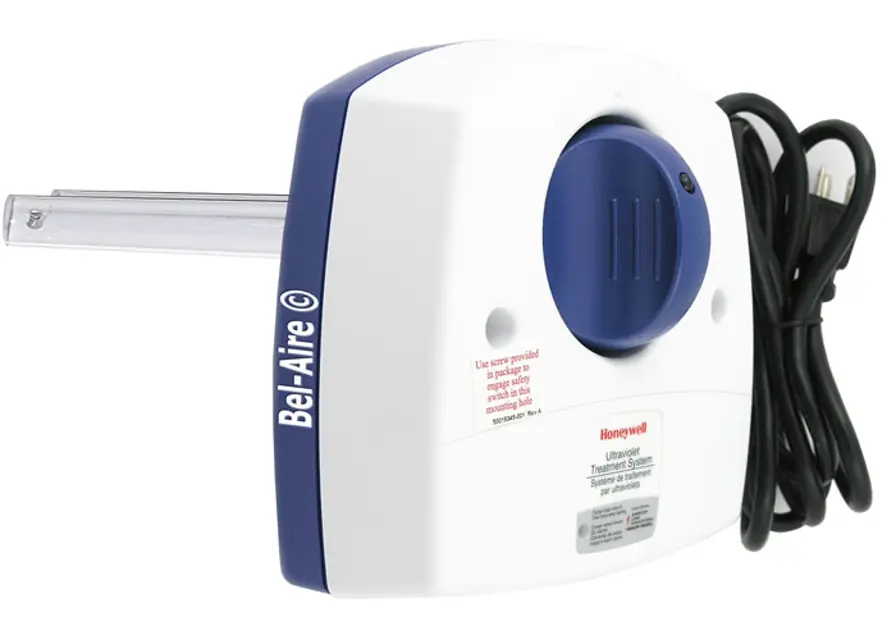

Honeywell Ultraviolet Air Treatment System UV100E

CAUTION! UV Lamp Burn Hazard. Harmful to bare skin. Can cause severe burns. Disconnect power 15 minutes before removing the ultraviolet lamp(s).

IMPORTANT: If the lamps in your model have external wires running along the glass surface, be sure to avoid pulling on those wires.

Disconnect the power to your HVAC system.

Unplug your ultraviolet air treatment system cord from the electrical outlet and allow the lamps to cool for at least 15 minutes.

Rotate your lamp knob counterclockwise and gently pull the lamp knob to remove the lamp(s).

Holding only the lamp knob, wipe the lamp glass using a soft cloth with window cleaner applied to it. Do not touch the lamp surface with your hands. Use only the cloth.

To ensure that the lamp indicator continues to function, use a moistened cotton swab to gently remove any dust that may have collected between the lamp light indicator on the base and the black lamp base.

Wipe your lamps with a clean, dry cloth.

Put your clean lamps back into the unit base by following Replacing Your Lamps (Annually) section steps 5, 6, and 7.

CAUTION! UV Lamp Burn Hazard. Harmful to bare skin. Can cause severe burns. Disconnect power 15 minutes before removing the ultraviolet lamp(s).

IMPORTANT! If the lamps in your model have external wires running along the glass surface, be sure to avoid pulling on those wires.

Annual replacement of your lamps is required.

Enter the model of your replacement lamp

Power to HVAC system disconnected?

Ultraviolet air treatment system cord unplugged from the electrical outlet and lamps cooled for at least 15 minutes?

Lamp knob rotated counterclockwise and lamp(s) removed gently?

Lamp inserted into the base unit with the lamp light indicator at the eleven o’clock position (left of the raised button on the unit cover)?

Lamp pushed in lightly while rotating it slowly counterclockwise, causing the lamp to drop into the bottom of the lamp well?
