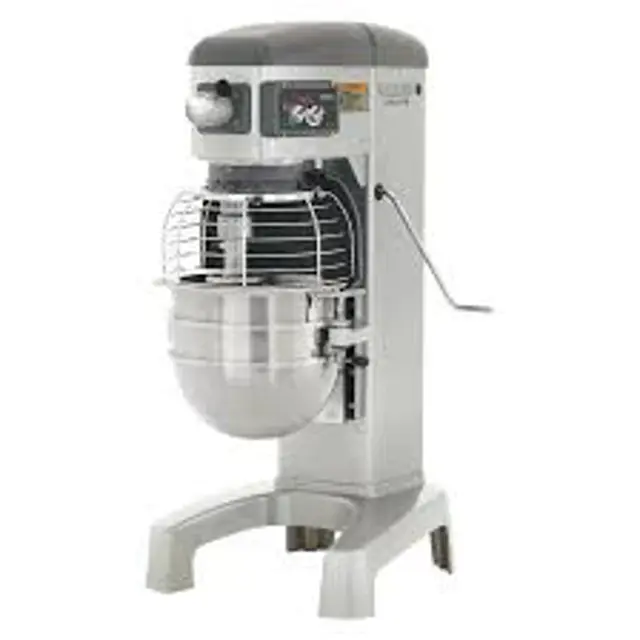

Hobart Mixer ML-134390

Bowl installed and locked into mix position

Bowl Support all the way up and bowl guard closed

Machine run momentarily by pushing the START and then STOP buttons

- The agitator clearance should be checked periodically. The agitator must not touch the bowl, and the maximum clearance between the bottom of the bowl and the B flat beater is 1/8" (3 mm); the maximum clearance between the bottom of the bowl and the ED dough arm is 5/16" (8 mm).

Install a bowl and agitator (e.g., beater). If the bowl and beater come into contact before the bowl support reaches its stop, adjust the stop screw. Refer to Adjust the Bowl/Agitator Clearance.

Pour enough flour in the bowl to cover the bottom of the bowl where the beater travels. With the bowl fully raised (beater should not touch the bottom of the bowl), briefly run the mixer at the lowest speed.

Turn off the mixer, disconnect the electrical power supply, and measure the depth of flour where the beater has traced a path. This measurement should be taken at several points around the bowl to assure accuracy.

- Adjust the Bowl/Agitator Clearance:

• Turn the stop screws counterclockwise to decrease the clearance or clockwise to increase the clearance.

• Reconnect the electrical power supply.

• Carefully operate the bowl lift several times to check the adjustment.;

WARNING! Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Mixer and accessories cleaned with hot water and mild soap solution

Rinsed with either a mild soda or vinegar solution

Thoroughly rinsed with clear water

Mixer washed with a clean, damp cloth

Ample room for cleaning under the mixer

Drip cup removed and wiped clean periodically

Sign off on the daily mixer cleaning

WARNING! Disconnect the electrical power to the machine and follow lockout / tagout procedures.

The slideways should be lubricated approximately twice a year. To reach these areas, fully lower the bowl support. Wipe a thin coat of Lubriplate 630AA on the bowl pad area of the bowl supports and on each slideway.

Occasionally, the planetary seal may become dry and begin to squeak. To correct this, work a little lubrication (mineral oil) under the lip of the seal.;
