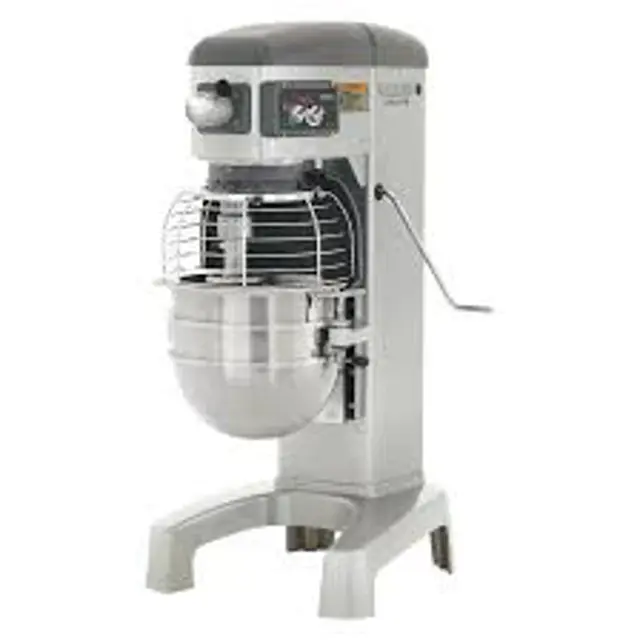

Hobart Mixer ML-134348

WARNING! Disconnect the electrical power to the machine and follow lockout / tagout procedures.

New mixer bowls and accessories washed with hot water and a mild soap solution

Bowls and agitators rinsed with either a mild soda or vinegar solution

Bowls and agitators thoroughly rinsed with clear water

Mixer washed with a clean, damp cloth

Drip cup removed and wiped clean

WARNING! Disconnect the electrical power to the machine and follow lockout / tagout procedures.

The slideways should be lubricated approximately twice a year. To reach these areas, fully lower the bowl support. Wipe a thin coat of Lubriplate 630AA on the bowl pad area of the bowl supports and on each slideway.

Occasionally, the planetary seal may become dry and begin to squeak. To correct this, work a little lubrication (mineral oil) under the lip of the seal.;

Bowl installed and locked into mix position

Bowl Support all the way up and bowl guard closed

Machine run momentarily by pushing the START and then STOP buttons

Warning: This procedure requires trained personnel with PPE!

Enter the clearance between the bottom of the bowl and the B flat beater in mm

Enter the clearance between the bottom of the bowl and the ED dough arm in mm

Bowl and beater do not come into contact before the bowl support reaches its stop?

Flour covers the bottom of the bowl where the beater travels?

Beater does not touch the bottom of the bowl when the bowl is fully raised?

Enter the depth of flour where the beater has traced a path
