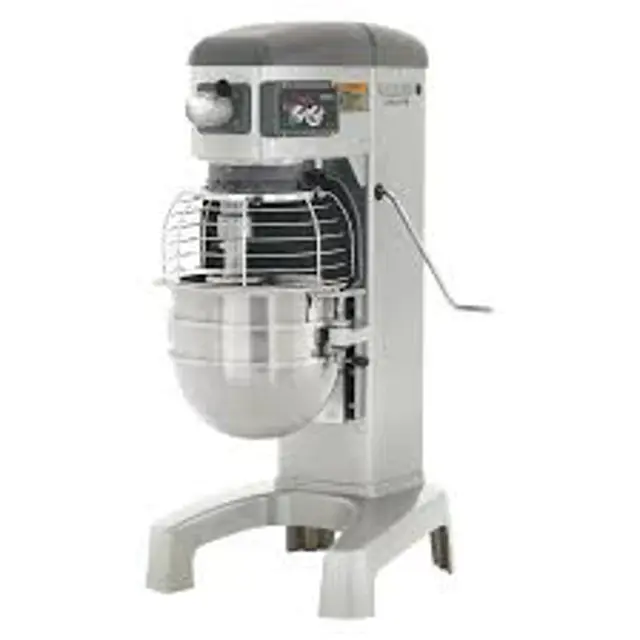

Hobart Mixer HL400

Warning: This procedure requires trained personnel with PPE!

Agitator not touching the bowl?

Enter the clearance between the bottom of the bowl and the B flat beater in mm

Enter the clearance between the bottom of the bowl and the ED dough arm in mm

Bowl and beater not in contact before the bowl support reaches its stop?

Adjust the Bowl/Agitator Clearance if necessary

Bowl fully raised and beater not touching the bottom of the bowl?

Enter the depth of flour where the beater has traced a path in mm

Adjust the Bowl/Agitator Clearance if necessary

WARNING! Disconnect the electrical power to the machine and follow lockout / tagout procedures.

The slideways should be lubricated approximately twice a year. To reach these areas, fully lower the bowl support. Wipe a thin coat of Lubriplate 630AA on the bowl pad area of the bowl supports and on each slideway.

Occasionally, the planetary seal may become dry and begin to squeak. To correct this, work a little lubrication (mineral oil) under the lip of the seal.;

Bowl installed and locked into mix position

Bowl Support all the way up and bowl guard closed

Machine run momentarily by pushing the START and then STOP buttons

WARNING! Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Mixer and accessories cleaned with hot water and mild soap solution

Rinsed with either a mild soda or vinegar solution

Thoroughly rinsed with clear water

Mixer washed with a clean, damp cloth

Drip cup removed and wiped clean

Sign off on the daily mixer cleaning
