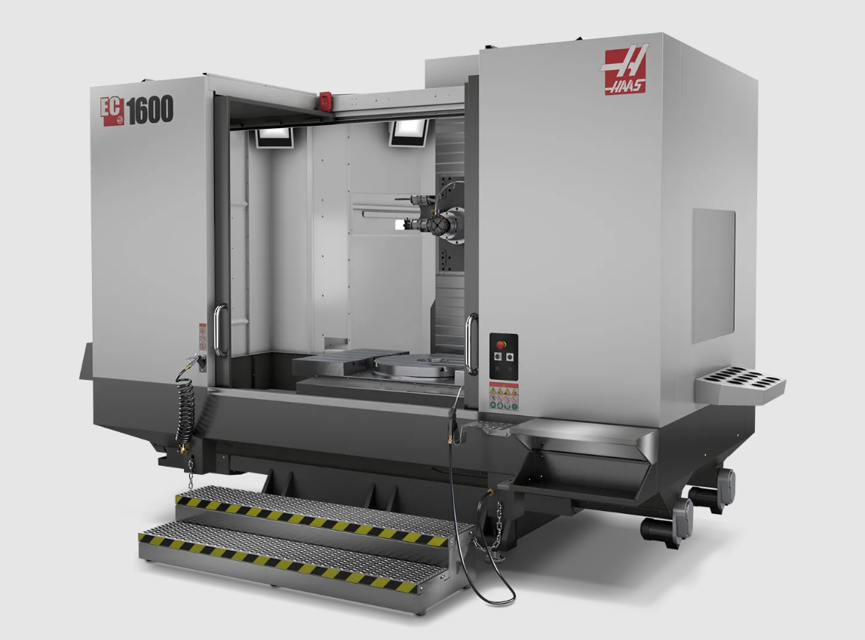

Haas Automation Haas Automation CNC Horizontal Machining Center EC-1600 EC-1600

• Replace air filter on control box every 2 years.

• EC-400 Replace the Rotary A-axis oil

1. Remove the fourteen (14) BHCS on the right Z-axis way cover at the receiver end and slide it toward the column.

2. Remove the left Z-axis way cover: Jog the Z-axis all the way toward the column and rotate the H-frame 45° counter clockwise. Remove the thirteen (13) BHCS that fasten the waycover to the receiver and remove it through the door at the control pendant.

3. Disconnect the reservoir at the rotary indexer end and plug the end of the hose.

4. Remove the drain plug on the opposite side of the rotary indexer. Replug the hole when the oil has drained.

5. Remove the air escape hole plug on the side of the platter.

6. Fill the rotary table until oil begins to escape from the air escape hole and plug it.

7. Replace the reservoir hose and the way covers. Command the receiver 180° to 0° repeatedly for fifteen minutes.

The tool pot chain tension should be checked regulary as a preventative maintenance procedure. Chain tension adjustment is performed in the lower left area of the magazine.

Loosen the four 12x50 SHCS from the front of the magazine. This will allow the plate to move. Loosen the hex lock nut on the shaft and tighten the shaft using the hex bolt. Lock in the adjustment with the hex lock nut, and retighten the four 12x50 SHCS. Tensioning will not change the indexed pot location, but check the alignment between the manual tool push cylinder and the tool pot.;

Warning: This procedure requires trained personnel with PPE!

Oil reservoir removed from the pump body?

End cap unscrewed using a strap wrench, pipe wrench or adjustable pliers?

Oil filter element removed from the filter body?

Inside of the filter housing and the filter end cap cleaned?

New oil filter element (p/n 94-3059), O-ring and the end cap installed?

Oil reservoir replaced and gasket seated properly between the reservoir and the top flange?

Sign off on the oil filter lubrication

• Check Through the Spindle Coolant (TSC) filters. Clean or replace element if needed.

• Check for proper operation of auto drain on filter regulator.

• On machines with the TSC option, clean the chip basket on the coolant tank.

Remove the tank cover and remove any sediment inside the tank. Disconnect the coolant pump from the cabinet and power off the machine before working on the coolant tank.

Do this MONTHLY for machines without the TSC option.

• Check air gauge/regulator for 85 psi. Check the spindle air pressure regulator for 17 psi. For 15K-spindle machines, check spindle air pressure regulator for 20 psi.

• For machines with the TSC option, place a dab of grease on the V-flange of tools.

Do this MONTHLY for machines without the TSC option.

• Clean exterior surfaces with mild cleaner. DO NOT use solvents.

Inspect way covers for proper operation

Lubricate with light oil, if necessary

Place a dab of grease on the outside edge of the guide rails of the tool changer

EC-400 Clean the locating pads on the A-axis and the load station

Sign off on the CNC Horizontal Machining Center Maintenance
