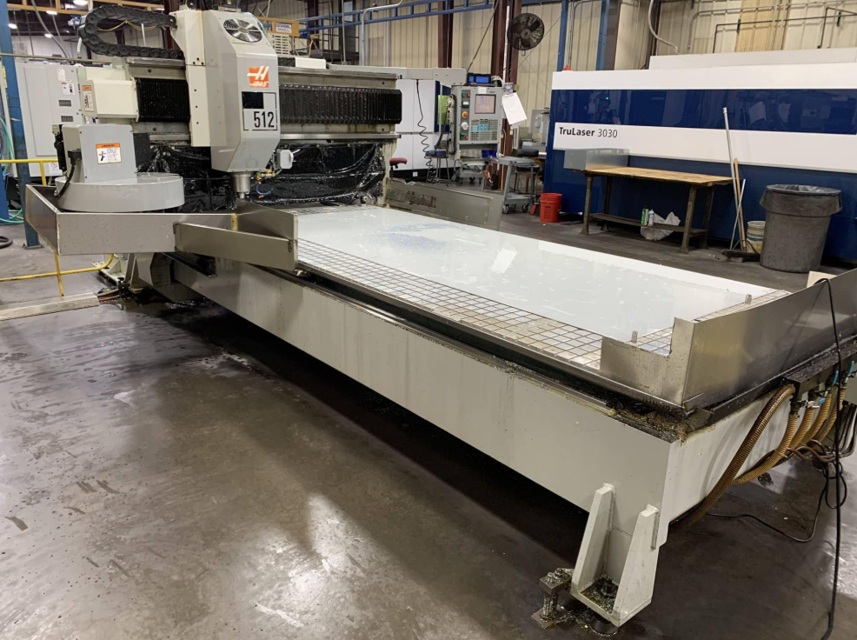

Haas Automation Gantry Router GR-512

Warning: This maintenance check requires trained personnel with PPE!

Number of strokes of the grease gun used for each fitting

Note: The grease fitting for the Y-axis and Z-axis is on the operator side of the sub plate.

Note: Each column has a grease fitting mounted in it and the X-axis ball screw grease fitting is under the machine.

Note: It is accessed by moving the gantry to the forward-most position.

Does the machine have an optional spindle?

Is the oiling system of the optional spindle checked?

Clean the coolant tank each week. The coolant hoses may need to be removed from the pump, ilter and if equipped, auxiliary ilter in order to gain better access to the tank.

Mark the hoses from the coolant pump and ilter so they can be reinstalled to the proper itting. It is possible to put the hoses on the wrong port, so it is very important that the hose are marked properly so they can be reinstalled correctly.;
