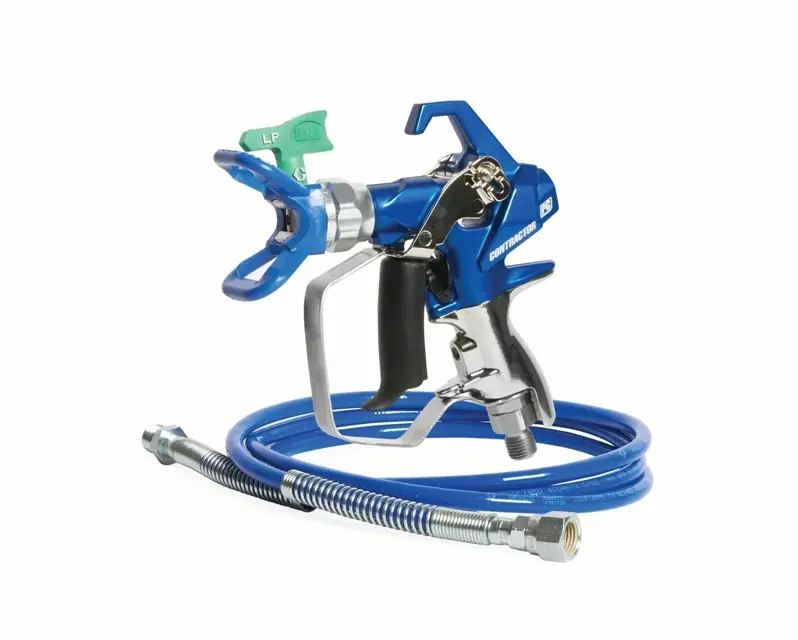

Graco Spray Gun 288438
Create an account to install this asset package.
Maintenance Plans for Graco Spray Gun Model 288438
Integrate maintenance plans directly into your work orders in MaintainX.
Spray Tip Clog Clearing
Clear Spray Tip Clog
Engage trigger lock (2)
Rotate spray tip (26) to unclog position
Disengage trigger lock (2)
Trigger gun at waste area to clear clog
NOTE: If spray tip (26) is difficult to rotate when turning to the unclog position, perform Pressure Relief Procedure, page 7, then turn Prime/Spray valve to spray position and repeat step 1.
Engage trigger lock (2)
Rotate spray tip (26) back to spray position
Disengage trigger lock (2) and continue spraying
Filter Maintenance
Warning: Follow the Pressure Relief Procedure before performing any maintenance on the gun to avoid serious injury from skin injection.
Pressure relieved?
Upload a photo of the disconnected fluid hose from gun at swivel
Trigger guard disconnected from gun retainer?
Upload a photo of the unscrewed handle from gun
Upload a photo of the removed filter through top of handle
Filter inspected for damage to the filter mesh?
Does the filter mesh have holes or voids?
Upload a photo of the cleaned filter
Equipment Cleaning
Warning: Do not leave the gun or any parts in water or cleaning solvents.
Flush gun
Clean filter
Clean paint off the outside
Stored in a dry location?
Notice: The gun is NOT compatible with cleaning solvents that contain methylene chloride.
Sign off on the equipment cleaning
Parts for Graco Spray Gun 288438
Access the parts list for your equipment in MaintainX.
Housing, Assy., FTX
289914
Filter, 60 And 100 Mesh Combo
287034
Packing, O-Ring
120777
FTX Gun
15J735
FTX-A Gun
15K736
Housing, Assy., FTX
289914
Filter, 60 And 100 Mesh Combo
287034
Packing, O-Ring
120777
FTX Gun
15J735
FTX-A Gun
15K736
Housing, Assy., FTX
289914
Filter, 60 And 100 Mesh Combo
287034
Packing, O-Ring
120777
FTX Gun
15J735
FTX-A Gun
15K736
