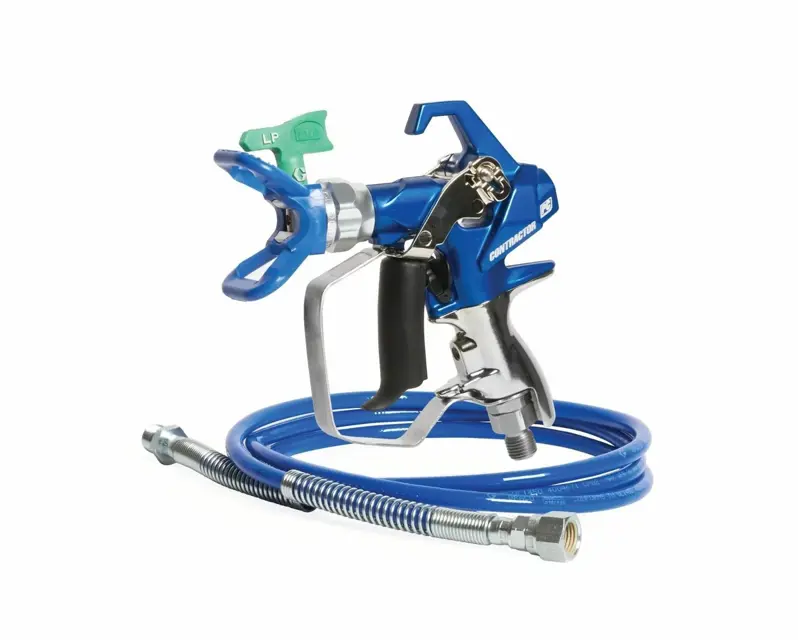

Graco Spray Gun 288429
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Graco Spray Gun 288429
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Graco Spray Gun 288429
Create an account to install this asset package.
Maintenance Plans for Graco Spray Gun Model 288429
Integrate maintenance plans directly into your work orders in MaintainX.
Spray Tip Clog Clearing
Warning: Always engage trigger lock before adjusting the spray tip
Engage trigger lock
Rotate spray tip to unclog position
Disengage trigger lock
Trigger gun at waste area to clear clog
If spray tip is difficult to rotate, perform Pressure Relief Procedure, then turn Prime/Spray valve to spray position and repeat step 1
Engage trigger lock
Rotate spray tip back to spray position
Disengage trigger lock and continue spraying
Equipment Cleaning
Warning: Do not leave the gun or any parts in water or cleaning solvents.
Notice: The gun is NOT compatible with cleaning solvents that contain methylene chloride.
Flush gun
Clean filter
Clean paint off the outside
Stored in a dry location?
Sign off on the equipment cleaning
Filter Maintenance
Warning: Follow the Pressure Relief Procedure before performing any maintenance on the gun to avoid serious injury from skin injection.
Pressure relieved?
Upload a photo of the disconnected fluid hose from gun at swivel
Trigger guard disconnected from gun retainer?
Upload a photo of the unscrewed handle from gun
Upload a photo of the removed filter through top of handle
Filter mesh inspected for damage?
Is the filter mesh damaged?
Upload a photo of the cleaned filter
Parts for Graco Spray Gun 288429
Access the parts list for your equipment in MaintainX.
Housing, Assy., FTX
289914
Filter, 60 Mesh
287032
Packing, O-Ring
120777
FTX Gun
15J735
FTX-A Gun
15K736
Housing, Assy., FTX
289914
Filter, 60 Mesh
287032
Packing, O-Ring
120777
FTX Gun
15J735
FTX-A Gun
15K736
Housing, Assy., FTX
289914
Filter, 60 Mesh
287032
Packing, O-Ring
120777
FTX Gun
15J735
FTX-A Gun
15K736
