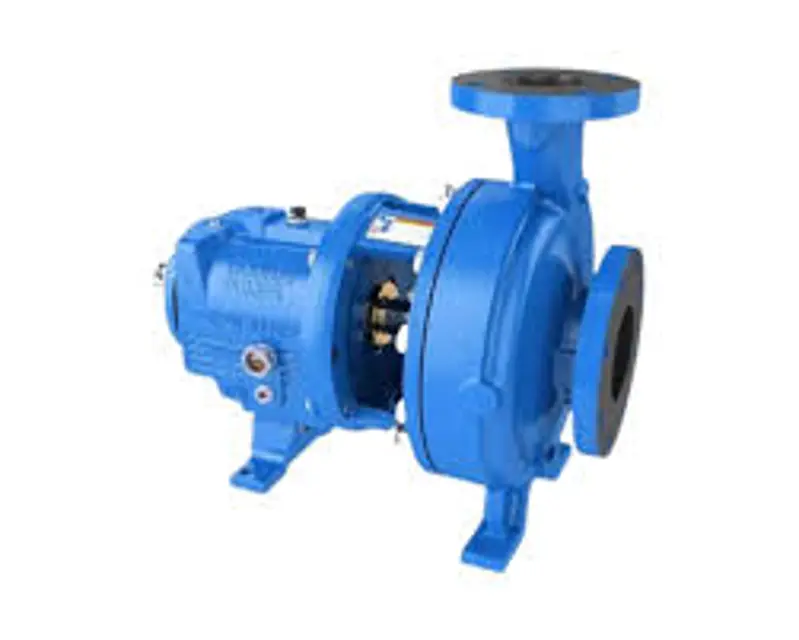

Goulds Pumps Pump 3198

• Check the foundation and the hold-down bolts for tightness.

• If the pump has been left idle, check the packing. Replace if required.

• Check the shaft alignment. Realign if required.

WARNING: Pumps are shipped without oil. Oil lubricated bearings must be lubricated at the job site.

Is the oil cloudy or contaminated as seen by inspection through the sight glass?

If yes, change the oil immediately.

Is the oil level at the center of the sight glass?

If not, remove fill plug and add oil until level is at the center of the sight glass. Replace fill plug.

Choose the oil type based on bearing temperature

• Check level and condition of oil through sight glass on bearing frame.

• Check for unusual noise, vibration and bearing temperatures.

Warning: Only use high quality turbine oil with rust and oxidation inhibitors

Enter the current hours on the bearing

Is the bearing temperature between 120°F (50°C) and 180°F (82°C)?

Is the Finned Tube oil cooler installed?

Sign off on the oil replacement
