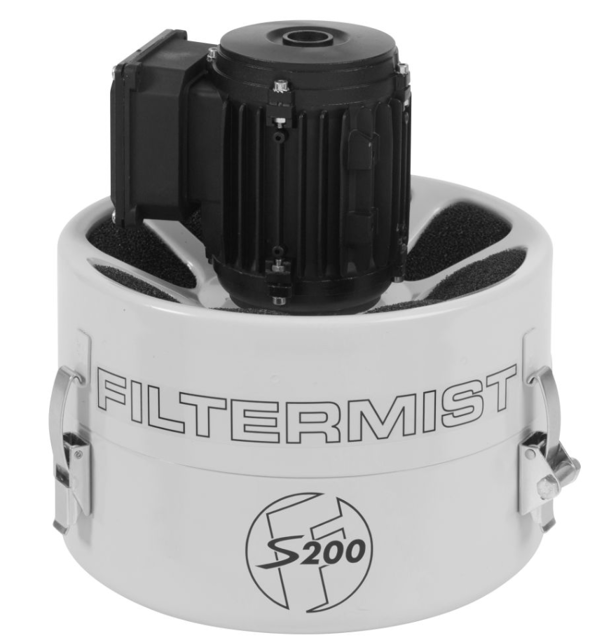

Filtermist Oil Mist Collector S200
Create an account to install this asset package.
Maintenance Plans for Filtermist Oil Mist Collector Model S200
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hourly Oil Mist Collector Maintenance
Safety latch and clips undone
Top and bottom of case separated
Old seal removed
Area where top and bottom of case join & drain hole cleaned
Drum removed
Old drum pads removed
Inside and outside of drum cleaned
New drum pads fitted
Motor mounting nuts removed
1000 Hourly Oil Mist Collector Maintenance
Start of Oil Mist Collector Maintenance
Safety latch and clips undone
Top and bottom of case separated
Old seal removed
Area where top and bottom of case join & drain hole cleaned
Old drum pads removed
Inside of drum cleaned
Drum inspected for signs of damage
IMPORTANT! Damaged drums should be replaced
Parts for Filtermist Oil Mist Collector S200
Access the parts list for your equipment in MaintainX.
Motor
20-213-30-052
Drum
20-213-30-020
Afterfilter (92% Efficiency)
20-206-10-000
Filter Kit
20-213-30-050
Spares Kit
20-213-30-093
Motor
20-213-30-052
Drum
20-213-30-020
Afterfilter (92% Efficiency)
20-206-10-000
Filter Kit
20-213-30-050
Spares Kit
20-213-30-093
Motor
20-213-30-052
Drum
20-213-30-020
Afterfilter (92% Efficiency)
20-206-10-000
Filter Kit
20-213-30-050
Spares Kit
20-213-30-093
