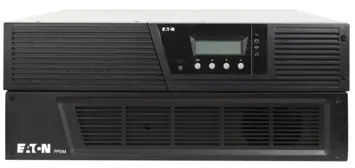

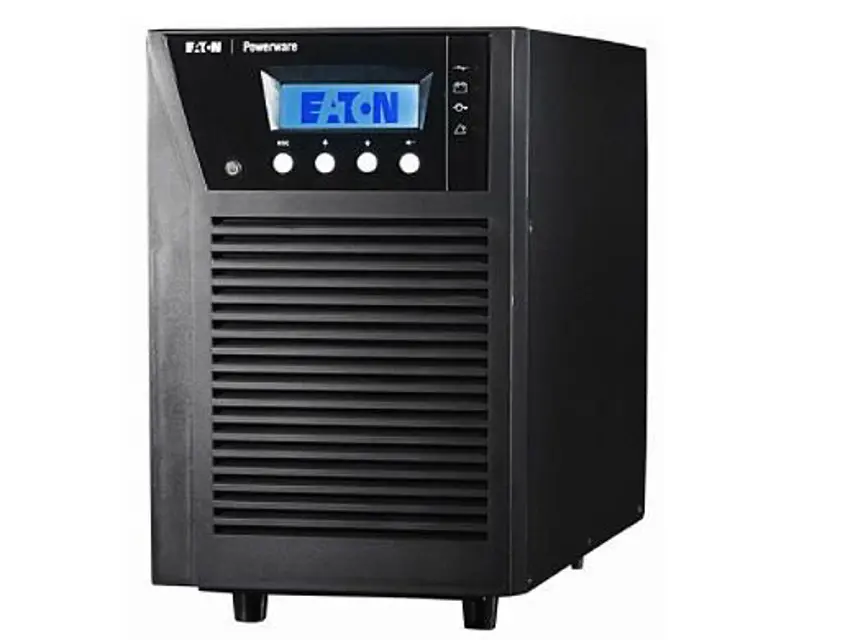

Eaton Uninterruptible Power System PW9130i1000T-XL

Connect the UPS to utility power

Check the battery recharge date on the shipping carton label

Remove the UPS right front cover

Disconnect the internal battery connector

Up to 1500 VA models only. If the EBM cable is not connected to an EBM, unclip the EBM cable and move it to the left out of the way

Grasp an edge of the battery cover plate and pull it forward gently. Remove and retain the battery cover plate

Carefully pull the handle on the battery tray and slide the battery package slowly out onto a flat, stable surface; use two hands to support the battery package

Slide the new battery package into the cabinet. Push the battery package in firmly

Replace the battery cover plate onto the screw mounts, threading the battery connector through the access slot

Reconnect the internal battery connector. Connect red to red, and black to black. Press the two parts tightly together to ensure a proper connection

Up to 1500 VA models only. If the EBM cable is not connected to an EBM, clip the EBM cable back into its holder on the battery cover plate

Warning: Ensure the UPS is unplugged before starting the procedure

Enter the date when the UPS was plugged in for charging

Is the UPS fully charged after 48 hours?

Press any button to activate the menu option

Was the menu option activated successfully?

Select CONTROL then START BATTERY TEST

Was the BATTERY TEST started successfully?

The UPS starts a battery test if the batteries are fully charged, the UPS is in Normal mode with no active alarms, and the bypass voltage is acceptable

Did the UPS start the battery test?
