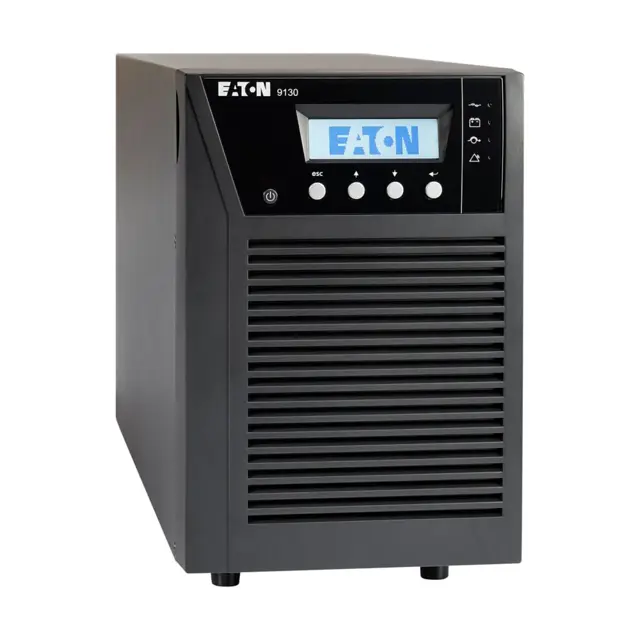

Eaton Uninterruptible Power System PW9130G2000T-XLAU
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Eaton Uninterruptible Power System PW9130G2000T-XLAU
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Eaton Uninterruptible Power System PW9130G2000T-XLAU
Create an account to install this asset package.
Maintenance Plans for Eaton Uninterruptible Power System Model PW9130G2000T-XLAU
Integrate maintenance plans directly into your work orders in MaintainX.
5 Year UPS Internal Batteries Replacement
Warning: Ensure the UPS is turned off and disconnected from power source before starting the procedure
UPS right front cover removed
Internal battery connector disconnected
Battery cover plate removed
Battery package slid out onto a flat, stable surface
New battery package slid into the cabinet
Battery cover plate replaced
Internal battery connector reconnected
UPS right front cover replaced
6 Month Battery Service
Warning: Only trained personnel should perform this procedure
Is the UPS connected to utility power?
Recharge the battery
Enter the battery recharge date from the shipping carton label
Sign off on the battery service
New Battery Testing
Ensure the UPS is plugged into a power outlet for 48 hours to charge the batteries
Is the UPS fully charged?
Press any button to activate the menu option
Select CONTROL then START BATTERY TEST
Did the UPS start a battery test?
During the battery test, the UPS transfers to Battery mode and discharges the batteries for 25 seconds
Did the UPS successfully discharge the batteries for 25 seconds?
Enter the percentage of the test completed
Sign off on the battery test
