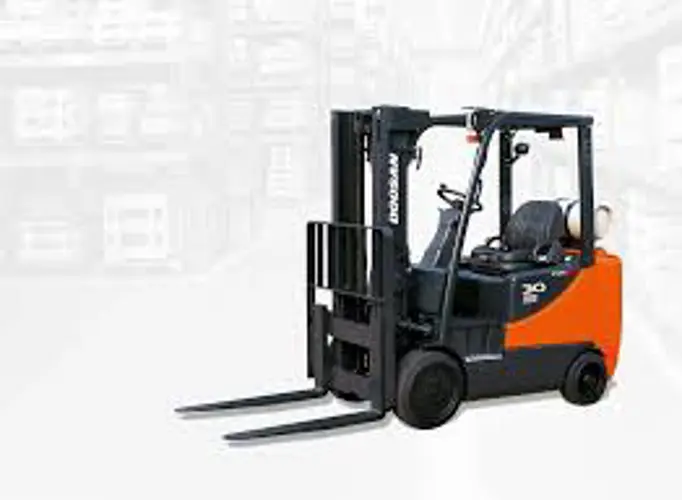

Doosan Lift Truck GC20E-3

Need answers fast?
Explore the manual using AI.

Doosan Lift Truck GC20E-3
Doosan Lift Truck GC20E-3

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Doosan Lift Truck GC20E-3

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

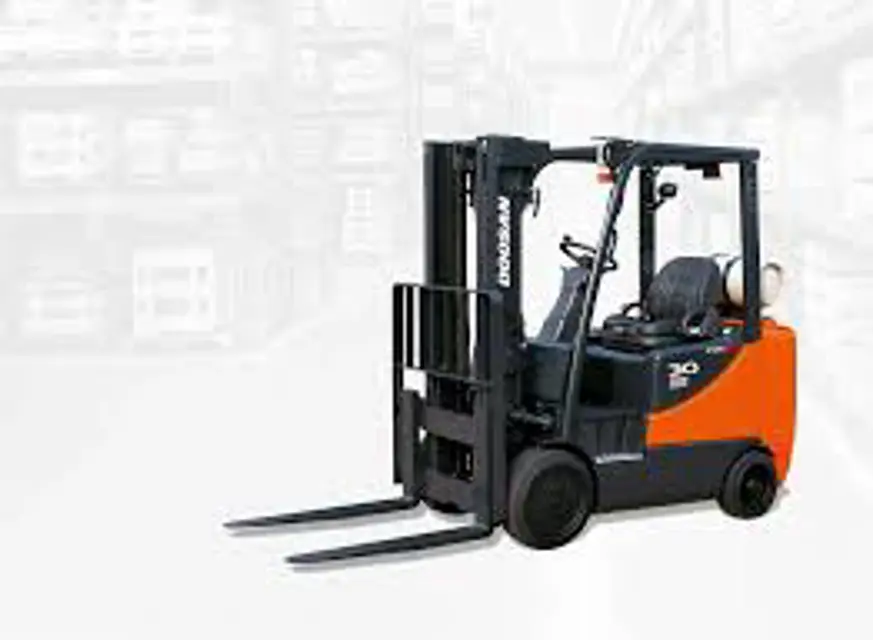

Doosan Lift Truck GC20E-3

Doosan Lift Truck GC20E-3

Create an account to install this asset package.

Maintenance Plans for Doosan Lift Truck Model GC20E-3

Integrate maintenance plans directly into your work orders in MaintainX.

Initial 250 Hours/1 Monthly Replacement

Check mark

Hydraulic Return Filter – Change

Check mark

Loosen the bolts of the hydraulic tank top plate assembly

Check mark

Remove the return filter from tank top plate assembly

Check mark

Change the return filter

Check mark

Install the tank top plate assembly and fasten the bolts

Check mark

Start the engine and operate the hydraulic controls, and the steering system, through a few cycles to fill the lines. Look for oil leaks

Check mark

Stop the engine and check the oil level. With all cylinders retracted, maintain the oil level to the FULL mark on the dip stick/filter cap assembly

Check mark

Sign off on the hydraulic return filter change

Run this procedureArrow right

Lift Truck Service

Check mark

Engine Valve Lash (DB33A Diesel Engine Only) - Check, Adjust

Check mark

Fuel Tank Filter Cap and Screen (If Equipped) - Clean

Check mark

Seat, Hood Latch & Support Cylinder - Check, Lubricate

Check mark

Fuses, Bulbs, Circuit Breaker & Relay - Change, Reset

Check mark

Fuse & Relay (G424E/G430E Only)

Check mark

Priming the Fuel System (Diesel Engine Only)

Check mark

Tires and Wheels (D, G-Series) - Inspect, Check

Check mark

Carriage Roller Extrusion – Adjust;

Run this procedureArrow right

1500 Hours/9 Monthly Service

Check mark

Inspect Ignition System (LP-Gas, Gasoline & Dual Fuel Engines Only)

Check mark

Replace Spark Plugs (LP-Gas, Gasoline & Dual Fuel Engines Only)

Check mark

Replace LP Fuel Filter Element (LP-Gas, Dual Fuel Engine Only)

Check mark

Fuel Filter(LP-Gas Engine Only)

Check mark

Testing Fuel Lock-off Operation (LP-Gas Engine Only);

Run this procedureArrow right

4500 Hours/2 Yearly Replacement

Check mark

Warning: Ensure engine and exhaust pipe are cooled before starting the procedure

Check mark

Engine stopped and exhaust pipe cooled

Check mark

Electrical connector of oxygen sensor disconnected

Check mark

Oxygen sensor removed

Check mark

New oxygen sensor assembled with correct tightening torque

Check mark

Electrical connector of oxygen sensor connected

Check mark

Sign off on the oxygen sensor replacement

Run this procedureArrow right

500 Hours/3 Monthly Service

Check mark

Belts - Check, Adjust

Check mark

Mast Hinge Pin – Lubricate

Check mark

Tilt Cylinders - Check, Adjust, Lubricate

Check mark

Crosshead Rollers - Inspect

Check mark

Transmission Oil Filter – Change

Check mark

Overhead Guard – Inspect

Check mark

Drive Axle Oil & Strainer - Change, Clean

Check mark

Steer Suspension – Inspect

Check mark

Parking Brake - Test, Adjust

Run this procedureArrow right

Parts for Doosan Lift Truck GC20E-3

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Engine

G424

Engine

G424

Engine

G424
