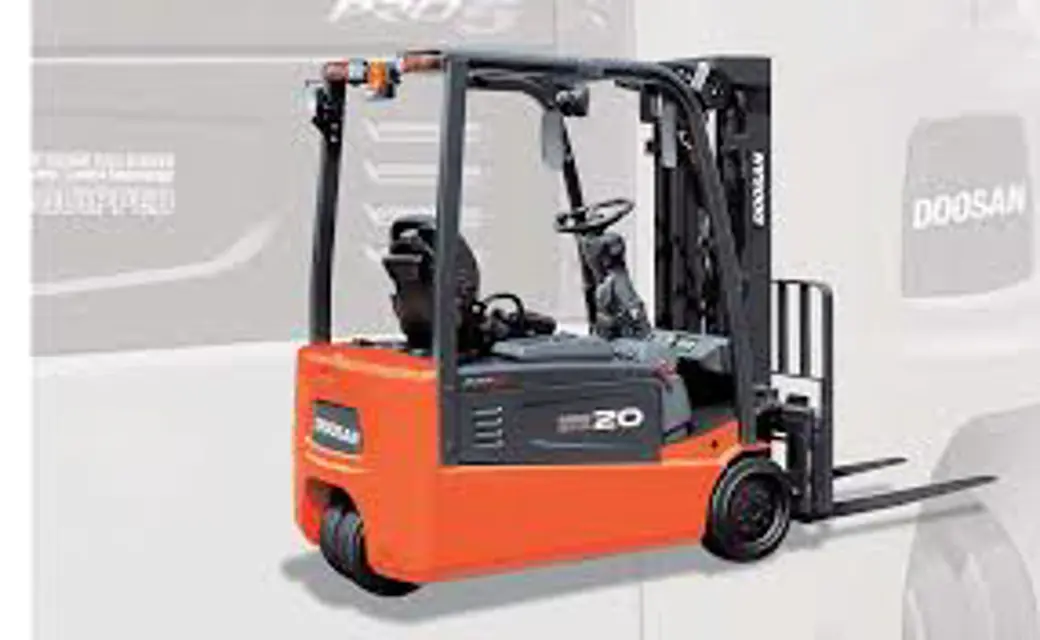

Doosan Lift Truck B20T-5

Steer Wheel Bearings - Reassembled

Drive Axle Oil changed successfully?

Drive and Pump Motor - Clean, Inspect

Drive and Pump Motor cleaned and inspected successfully?

Tires and Wheels - Inspect, Check

Tires and Wheels inspected and checked successfully?

Lift Chains - Test, Check, Adjust

Lift Chains tested, checked, and adjusted successfully?

Sign off on the 1000 Hours/6 Monthly Service

Park the lift truck level, with the parking brake engaged and directional control lever in NEUTRAL

Raise the mast and block in place

Unscrew oil air-breather (Oil filling plug) (1), level checking plug (2), and remove the drain plug (3). Allow the oil to drain

Fill the drive axle housing with oil through air-breather plug hole (1), the accurate amount of oil is defined by the opening of level checking plug (2)

Screw the level checking plug (2) and air-breather in with the seal ring

Raise the mast and remove the blocking

Mast, Carriage, Lift Chains & Attachments - Inspect

Mast, Carriage, Lift Chains & Attachments - Lubricate

Carriage Roller Extrusion - Adjust

Sign off on the lift truck service
