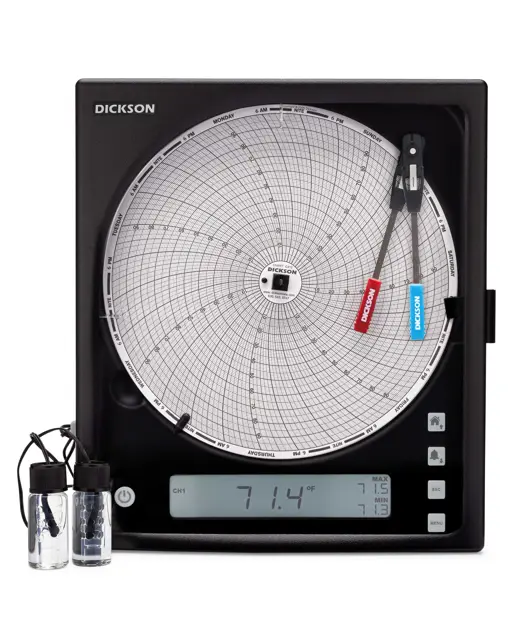

Dickson Data Temperature Data-Logger Sensor TH8-10

Create an account to install this asset package.

Maintenance Plans for Dickson Data Temperature Data-Logger Sensor Model TH8-10

Integrate maintenance plans directly into your work orders in MaintainX.

Pen Adjustment

Initial Setup

Press MENU

Use the up/down arrow keys to navigate to the “Pen Adjust” submenu

Press MENU

Pen Adjustment Process

Observe both pen(s) moving to the pen ramp, then out onto the chart

Adjust Pen 1 (Red/Temperature) using the up/down arrow keys to align with the outer bold ring on the chart

Press MENU to save the position of Pen 1

Is the Chart Recorder a 2-pen unit?

Run this procedure

Sensor Calibration

Access Calibration Menu

Press MENU

Navigate to the 'Calibration' submenu using the up/down arrow keys

Press MENU again to enter the Calibration submenu

Adjust Channel Values

Adjust the value for the 1st channel using the up/down arrow keys

Press MENU when at the desired value for the 1st channel

Did 'Success' appear on the screen after calibrating the 1st channel?

Adjust the value for the 2nd channel using the up/down arrow keys

Run this procedure

Parts for Dickson Data Temperature Data-Logger Sensor TH8-10

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Replaceable Sensor, Temperature/Humidity, 2 Pen, for Models TH8-10/TH8-11/TH8-11R

RS010

Replaceable Sensor, Single Temp Thermistor, 1 Pen, for Model KT8-20

RS020

Replaceable Sensor, Dual Temp Thermistor, 2 Pen, for Model KT8-21

RS021

Replaceable Sensor, Single Temp K-TC, 1 Pen, for Models KT8-30/KT8-30R

RS030

Replaceable Sensor, Dual Temp K-TC, 2 Pen, for Models KT8-31/KT8-31R

RS031

Replaceable Sensor, Temperature/Humidity, 2 Pen, for Models TH8-10/TH8-11/TH8-11R

RS010

Replaceable Sensor, Single Temp Thermistor, 1 Pen, for Model KT8-20

RS020

Replaceable Sensor, Dual Temp Thermistor, 2 Pen, for Model KT8-21

RS021

Replaceable Sensor, Single Temp K-TC, 1 Pen, for Models KT8-30/KT8-30R

RS030

Replaceable Sensor, Dual Temp K-TC, 2 Pen, for Models KT8-31/KT8-31R

RS031

Replaceable Sensor, Temperature/Humidity, 2 Pen, for Models TH8-10/TH8-11/TH8-11R

RS010

Replaceable Sensor, Single Temp Thermistor, 1 Pen, for Model KT8-20

RS020

Replaceable Sensor, Dual Temp Thermistor, 2 Pen, for Model KT8-21

RS021

Replaceable Sensor, Single Temp K-TC, 1 Pen, for Models KT8-30/KT8-30R

RS030

Replaceable Sensor, Dual Temp K-TC, 2 Pen, for Models KT8-31/KT8-31R

RS031
