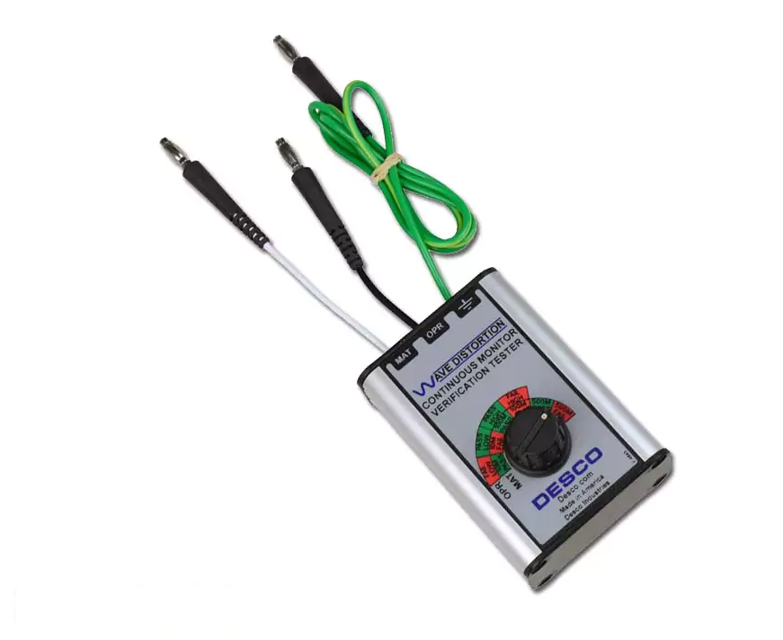

Desco Industries Full Time Continuous Monitor 98211

Connect the Calibration Unit’s GROUND test lead to a ground point.

Insert the Calibration Unit’s OPERATOR test lead into the Full Time Monitor’s OPERATOR jack.

Start the Calibration Unit’s selector knob at the full counter-clockwise position.

Test only the first four limits on the Calibration Unit.

Rotate the selector knob to the LOW FAIL position. Check if the red OPERATOR GROUND LED on the monitor illuminates and the alarm sounds.

Rotate the selector knob clockwise to the LOW LIMIT position of the green pass sector. Check if the monitor’s green OPERATOR GROUND LED illuminates.

Rotate the selector knob clockwise to the HIGH PASS position at the end of the green pass sector. Check if the monitor’s green OPERATOR GROUND LED remains illuminated.

Connect the Calibration Unit’s GROUND test lead to a ground point.

Insert a wrist cord into the monitor’s operator jack and snap it to the parking station.

Connect the included banana plug / wire adapter to the Calibration Unit’s MAT test lead.

Insert the adapter’s wire terminal into monitor’s MAT terminal.

Rotate the Calibration Unit’s selector knob to the MAT FAIL 10M position. Check if the monitor’s red MAT GROUND LED illuminates and the alarm sounds.

Rotate the selector knob counter-clockwise to the MAT PASS 10M position. Check if the monitor’s green MAT GROUND LED illuminates.
