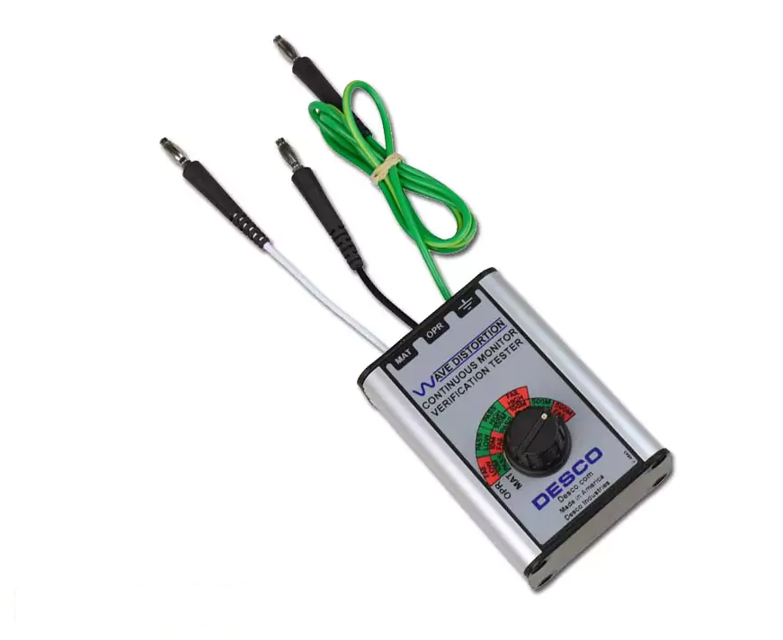

Desco Industries Full Time Continuous Monitor 98210

Connect the Calibration Unit’s GROUND test lead to a ground point

Insert a wrist cord into the monitor’s operator jack and snap it to the parking station

Connect the included banana plug / wire adapter to the Calibration Unit’s MAT test lead

Insert the adapter’s wire terminal into monitor’s MAT terminal

Rotate the Calibration Unit’s selector knob to the MAT FAIL 10M position

Rotate the selector knob counter-clockwise to the MAT PASS 10M position

Check that all connections are secure

Record any anomalies observed during the test

Confirm the completion of the Mat Circuit Testing procedure

Connect the Calibration Unit’s GROUND test lead to a ground point.

Insert the Calibration Unit’s OPERATOR test lead into the Full Time Monitor’s OPERATOR jack.

Rotate the selector knob to the LOW FAIL position. Check if the red OPERATOR GROUND LED illuminates and the alarm sounds.

Rotate the selector knob to the LOW LIMIT position. Check if the green OPERATOR GROUND LED illuminates.

Rotate the selector knob to the HIGH PASS position. Check if the green OPERATOR GROUND LED remains illuminated.

Rotate the selector knob to the HIGH FAIL position. Check if the red OPERATOR GROUND LED illuminates and the alarm sounds.
