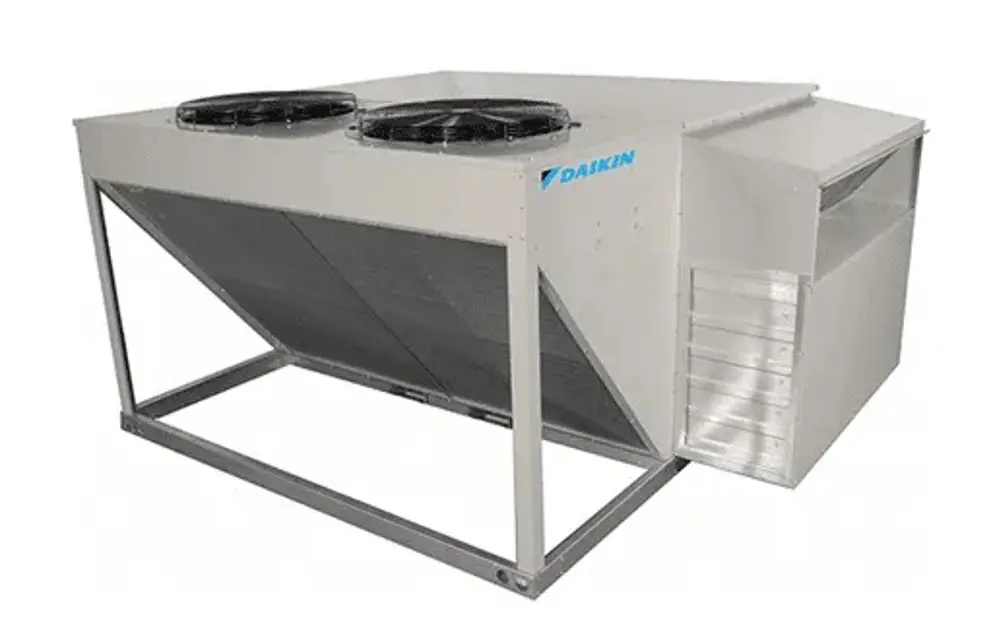

Daikin Packaged Rooftop System DPS012AHMG2DV-4

Prepare for storage control compartment

Is the electronic control equipment in the unit stored in a 5% to 95% RH (non-condensing) environment?

It may be necessary to put a heat source (light bulb) in the main control panel to prevent the accumulation of atmospheric condensate within the panel. The location and wattage of the heat source is dependent on local environmental conditions

Is the heat source in the main control panel functional?

Is the heat source adequate for current conditions?

Check the control compartment every two weeks to confirm that the heat source is functional and is adequate for current conditions;

Check combustion inducer fan for dirt buildup and lint

Check combustion air intake louvers and flue box/vent for accumulation of dirt and debris

Inspect and clean flue tubes and combustion chamber

Keep burner vestibule clean. Dirt and debris can result in poor combustion and lower efficiency

Sign off on the rooftop system maintenance

Check vent terminal screens for blockages and accumulation

Heater and the Venting System shall be inspected once a year by a qualified service agency.

Check all valves, piping and connections of Gas Train for leakage with a rich soap solution or UL 913 combustible gas leak detector. Any bubbling is considered a leak and must be eliminated.

Inspect and clean flame rod, ignition electrode, and burner manifold

Remove any debris that may have accumulated in the drain pain and drain

Sign off on the rooftop system maintenance

Clean Option E Coated Coils Surfaces

Quarterly cleaning is essential to extend the life of an Option E Coated Coil and is required to maintain warranty coverage

Coil cleaning shall be part of the unit's regularly scheduled maintenance procedures

Failure to clean an Option E Coated Coil will void the warranty and may result in reduced efficiency and durability in the environment

For routine quarterly cleaning, first clean the coil with the below approved coil cleaner

Coil cleaned with approved cleaner?

After cleaning the coils with the approved cleaning agent, use the approved chloride remover (under the Recommended Chloride Remover section) to remove soluble salts and revitalize the unit;

Coil cleaned with approved chloride remover?

Warning: This service requires trained personnel with PPE!

Phase voltage monitor functional?

If phase voltage monitor is not functional, report the issues to the maintenance team and stop the procedure

Are the readings matching the factory defaults?

Issues found during the service
