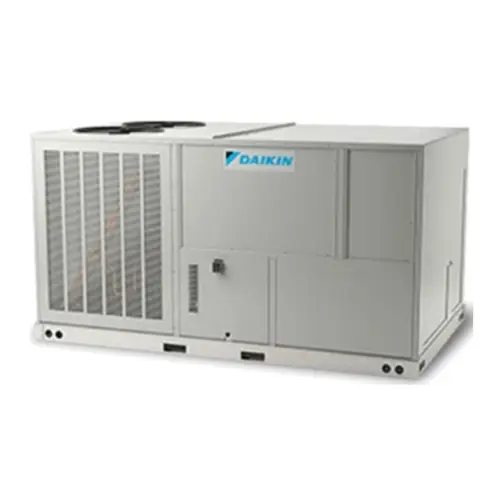

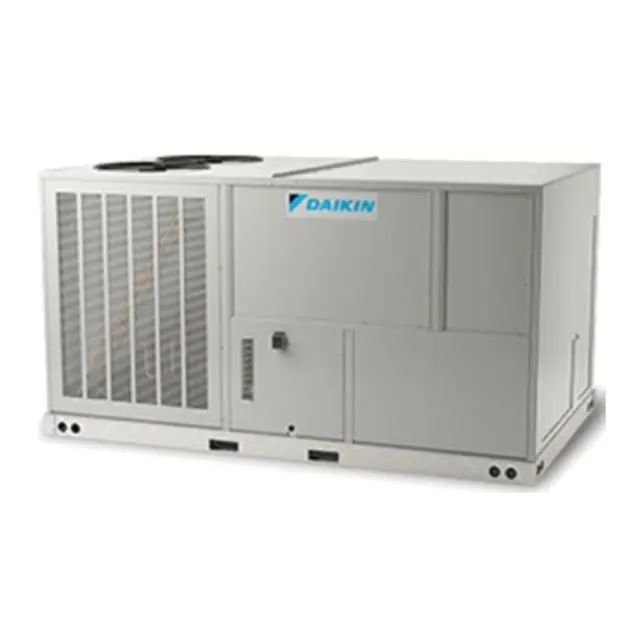

Daikin Packaged Gas Unit DBG0603BH00001SAA

CAUTION: TO PREVENT PROPERTY DAMAGE DUE TO FIRE AND LOSS OF EQUIPMENT EFFICIENCY OR EQUIPMENT DAMAGE DUE TO DUST AND LINT BUILD UP ON INTERNAL PARTS, NEVER OPERATE UNIT WITHOUT AN AIR FILTER INSTALLED IN THE RETURN AIR SYSTEM

Every application may require a different frequency of replacement of dirty filters. Filters must be replaced at least every three (3) months during operating seasons

Dirty filters are the most common cause of inadequate heating or cooling performance. Filter inspection should be made at least every two months; more often if necessary because of local conditions and usage

Discard dirty throwaway filters and replace with a new, clean filter

Disposable return air filters are supplied with this unit. See the unit Specification Sheet or Technical Manual for the correct size and part number.

Remove the filter access panel on return side of the unit

WARNING: TO AVOID PERSONAL INJURY OR DEATH DUE TO ELECTRIC SHOCK, DO NOT REMOVE ANY INTERNAL COMPARTMENT COVERS OR ATTEMPT ANY ADJUSTMENT. CONTACT A QUALIFIED SERVICER AT ONCE IF AN ABNORMAL FLAME SHOULD DEVELOP

Examine all flue product carrying areas of the furnace, its vent system, and main burners

Disconnect power to the unit and remove furnace section access panel

Inspect and periodically clean the vent outlet (bird screen) on the access panel

Check the burner flames for: Good adjustment, Stable, soft and blue, Not curling, floating, or lifting off

Sign off on the 1 Yearly Gas Unit Maintenance

WARNING: HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH

WARNING: TO PREVENT PERSONAL INJURY OR DEATH DUE TO IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE, REFER TO THIS MANUAL. FOR ADDITIONAL ASSISTANCE OR INFORMATION, CONSULT A QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER

CAUTION: THIS UNIT MUST BE ISOLATED FROM THE GAS SUPPLY PIPING SYSTEM BY CLOSING ITS INDIVIDUAL MANUAL SHUTOFF VALVE DURING ANY PRESSURE TESTING EQUAL TO OR LESS THAN 1/2 PSIG

Tighten all belts, set screws, and wire connections

Clean evaporator and condenser coils mechanically or with cold water, if necessary. Usually any fouling is only matted on the entering air face of the coil and can be removed by brushing

Align or replace belts as needed

Check for blockage of condensate drain
