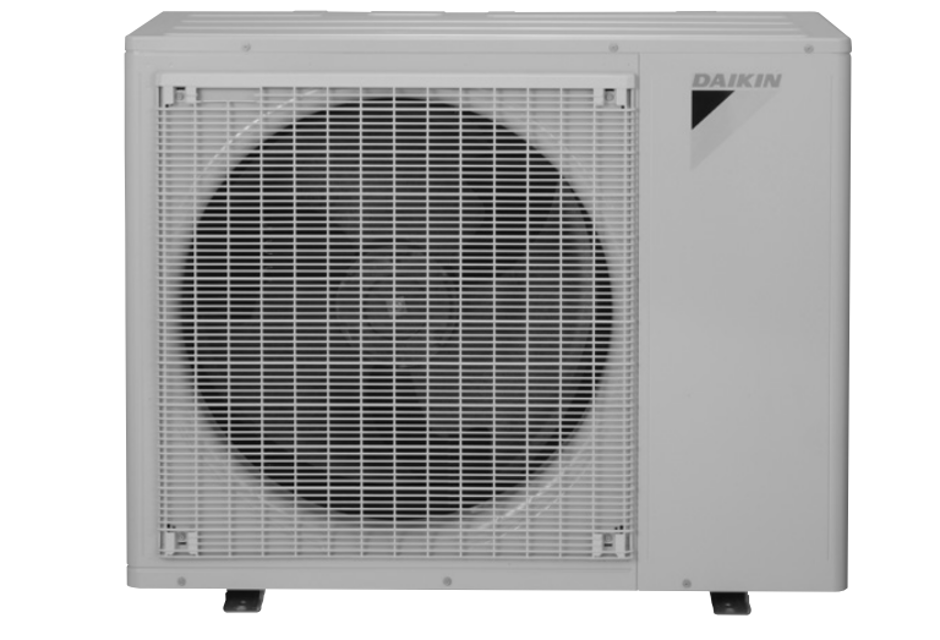

Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner 3MXL24WMVJU9

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner Model 3MXL24WMVJU9

Integrate maintenance plans directly into your work orders in MaintainX.

Power Module Check

Warning: Ensure that the voltage between (+) and (–) of the power module is about 0 V before proceeding

Voltage between (+) and (–) of the power module is about 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector disconnected

Measure resistance between the (+) or (–) terminal of the power module and the U, V, or W terminal of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check

Run this procedure

Capacitor Voltage Check

Warning: This procedure requires trained personnel with PPE!

Before this check, be sure to check the main circuit for short circuit.

Circuit breaker is still on

Measure the voltage according to the drawing of the model in question

Be careful never to touch any live parts.

Use a multimeter to check that the voltage between FU2 and DC– is 50 V or less.

The surface of the test points (DC–) may be covered with the coating. Be sure to make firm contact between the multimeter probes and the test points.

Use a multimeter to check that the voltage between DC + and DC – is 50 V or less.

The surface of the test points (DC +, DC –) may be covered with the coating. Be sure to make firm contact between the multimeter probes and the test points.

Run this procedure

Main Circuit Short Check

Warning: Ensure the power is off before starting the procedure

Voltage between (+) and (–) of the diode bridge (DB1) is about 0 V

Measure the resistance between the pins of the DB1

Resistance is infinity or less than 1 k

Turn the power off

Remove the top plate (10 screws)

Remove the right side plate (6 screws)

Remove the front plate (1 screw). The front plate is heavy, so take care.

Remove the shield plate (2 screws)

Run this procedure

Outdoor Fan Motor Check

Warning: This procedure requires trained personnel with PPE!

2/3/4MXS, 2/3MXL(H)

Voltage between the pins 4 - 7

Control voltage between the pins 3 - 4

Rotation command voltage between the pins 2 - 4

Pulses output at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Is the fuse melted?

If NG in step 2 or 4, select the defective part

5MXS, 4MXL(H)

Run this procedure

Electronic Expansion Valve Check

Conduct the followings to check the electronic expansion valve (EV).

1. Check if the EV connector is correctly inserted in the PCB. Match the EV unit number and the connector number.

2. Turn the power off and on again, and check if all the EVs generate latching sound.

3. If any of the EVs does not generate latching sound in the above step 2, disconnect that connector and check the continuity using a multimeter.

Check the continuity between the pins 5 - 1, 5 - 2, 5 - 3, 5 - 4. If there is no continuity between the pins, the EV coil is faulty.

4. If no EV generates a latching sound in the above step 2, the outdoor unit PCB is faulty.

5. If the continuity is confirmed in the above step 3, mount a good coil (which generated latching sound) in the EV unit that did not generate a latching sound, and check if that EV generates a latching sound.

If a latching sound is generated, the outdoor unit PCB is faulty.

If a latching sound is not generated, the EV unit is faulty.

Run this procedure
