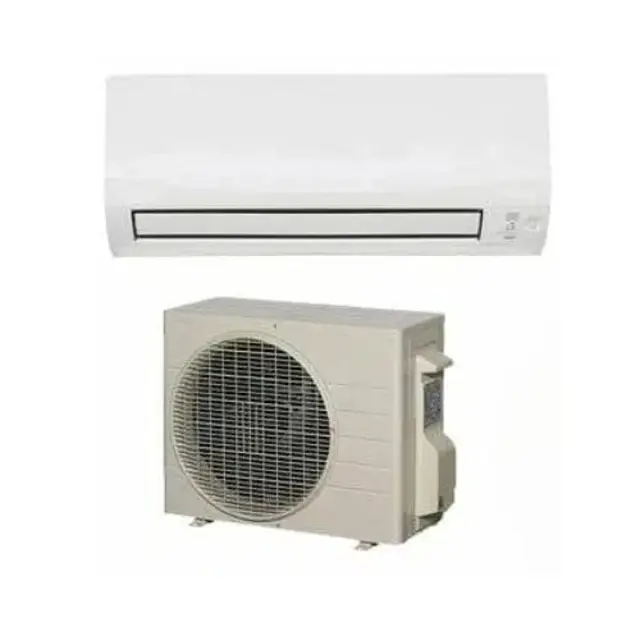

Daikin Air Conditioner FTXV71WVMA

Warning: The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves

Open the front panel and pull out the air filters

Check that the filters are inserted securely under the tabs

Open the front panel and pull out the air filters

Remove the filters from the tabs

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

For cleaning, do not use the materials as follows: Hot water above 40°C, Volatile liquid such as benzene, petrol and thinner, Polishing compound, Rough materials such as a scrubbing brush

Clean Indoor unit, Outdoor unit and Remote controller if bothered by dirt

Operate the FAN mode for several hours on a fine day to dry out the inside

Press ON/OFF and start the operation

After operation stops, turn off the circuit breaker for the room air conditioner

Warning: To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time

Both batteries replaced at the same time with new size AAA.LR03 (alkaline) batteries

Is the LCD blinking as an alert that the batteries need replacing?

Note: In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking

Batteries supplied with the remote controller are for initial operation

Note: The batteries may run out in less than 1 year

Sign off on the battery replacement

Warning: Ensure the air conditioner is turned off before starting the cleaning process.

Front panel opened successfully?

Air filters removed successfully?

Clean the air filters with water or vacuum cleaner

Air filters cleaned successfully?

If the dust does not come off easily, wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

If the panel is dirty, proceed with the following steps

Did you stop the operation and turn off the circuit breaker?

Did you wipe the panel with a soft damp cloth?

What type of detergent did you use?

CAUTION: For cleaning, do not use any of the following

Confirm you did not use any of the following for cleaning
