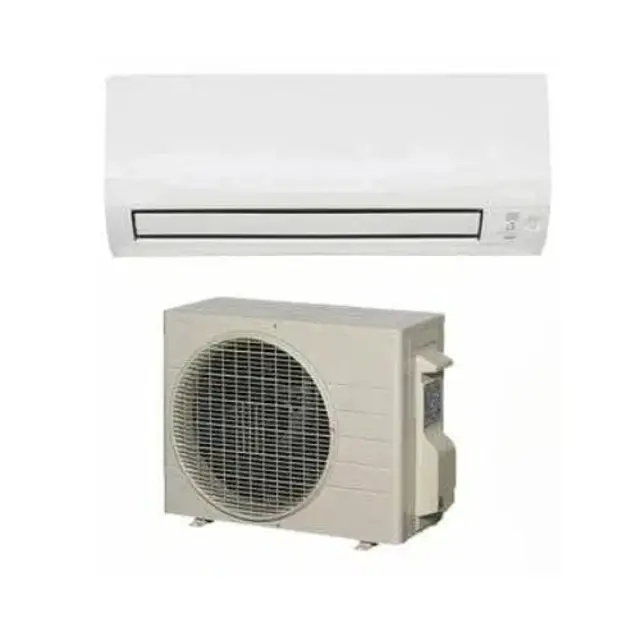

Daikin Air Conditioner FTXV46WvMA

Warning: To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time

Both batteries replaced at the same time with new size AAA.LR03 (alkaline) batteries

Is the LCD blinking as an alert that the batteries need replacing?

Note: In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking

Batteries supplied with the remote controller are for initial operation. The batteries may run out in less than 1 year

Sign off on the battery replacement

Warning: Ensure the air conditioner is turned off before starting the cleaning process

Sign off on the air filter cleaning

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

For cleaning, do not use the materials as follows: Hot water above 40°C, Volatile liquid such as benzene, petrol and thinner, Polishing compound, Rough materials such as a scrubbing brush

Clean Indoor unit, Outdoor unit and Remote controller if bothered by dirt

Press ON/OFF and start the operation

After operation stops, turn off the circuit breaker for the room air conditioner

Clean the air filters and reattach them

Warning: The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Open the front panel and pull out the air filters

Check that the filters are inserted securely under the tabs

Remove the filters from the tabs

Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

After washing, shake off remaining water and let them dry in the shade

Do not wiring out the filter when removing water from it

Do not wash the filters as this will reduce their efficiency

Remove each filter from the front grille by detaching them from the 6 tabs and then install the new filters

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

If the panel is dirty, proceed with the following steps

Only neutral detergent may be used

For cleaning, do not use any of the following:

Check if any of the following were used

Sign off on the front panel cleaning
