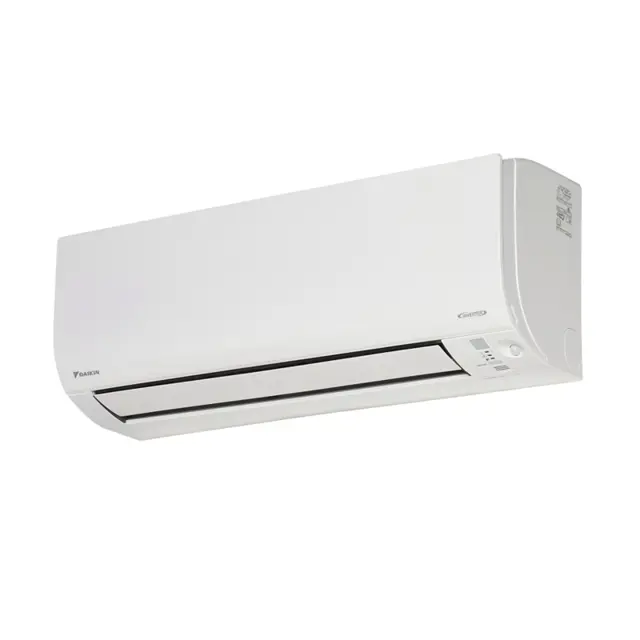

Daikin Air Conditioner FTXS71KVMA

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Hold the recessed parts of the frame and unhook the 4 claws

Vacuum dusts, and soak in lukewarm water or water for about 10 to 15 minutes if dirt is heavy

After washing, shake off remaining water and dry in the shade

Remove the tabs on the filter frame and replace with a new filter

Set the filters as they were and close the front panel

Note any issues found during the maintenance

Sign off on the air conditioner maintenance

CAUTION: When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully

CAUTION: When removing or attaching the front panel, support the panel securely with hand to prevent it from falling

CAUTION: After cleaning, make sure that the front panel is securely fixed

If the front panel is not dirty, skip the cleaning procedure

Hold the front panel by the panel tabs on the 2 sides and open it

Press the front panel at both sides and the center to close it

Wipe it with soft cloth soaked in water

CAUTION: Do not touch the aluminum fins by bare hand at the time of dismounting or mounting the filter

Push a little upwards the filter tab at the center of each air filter, then pull it down

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily:

Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade

Be sure to remove the titanium apatite photocatalytic air-purifying filter

Set the filters as they were and close the front panel

Sign off on the air filter cleaning

Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded

Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit

Check that the drain comes smoothly out of the drain hose during COOL or DRY operation

If no drain water is seen, is water leaking from the indoor unit?

Operate the FAN only for several hours on a nice day to dry out the inside

After operation stops, turn off the breaker for the room air conditioner

Clean the air filters and set them again

Take out batteries from the remote controller

Warning: Use batteries of the same type and replace the 2 old batteries together

If the system is not used for a long time, take the batteries out

Enter the number of months since the last battery replacement

Is the remote controller display beginning to fade?

Is there degradation of reception performance?

If yes to either of the above, replace both 2 batteries with new, size AAA.LR03 (alkaline)

Batteries replaced with new, size AAA.LR03 (alkaline)?

The attached batteries are provided for the initial use of the system
