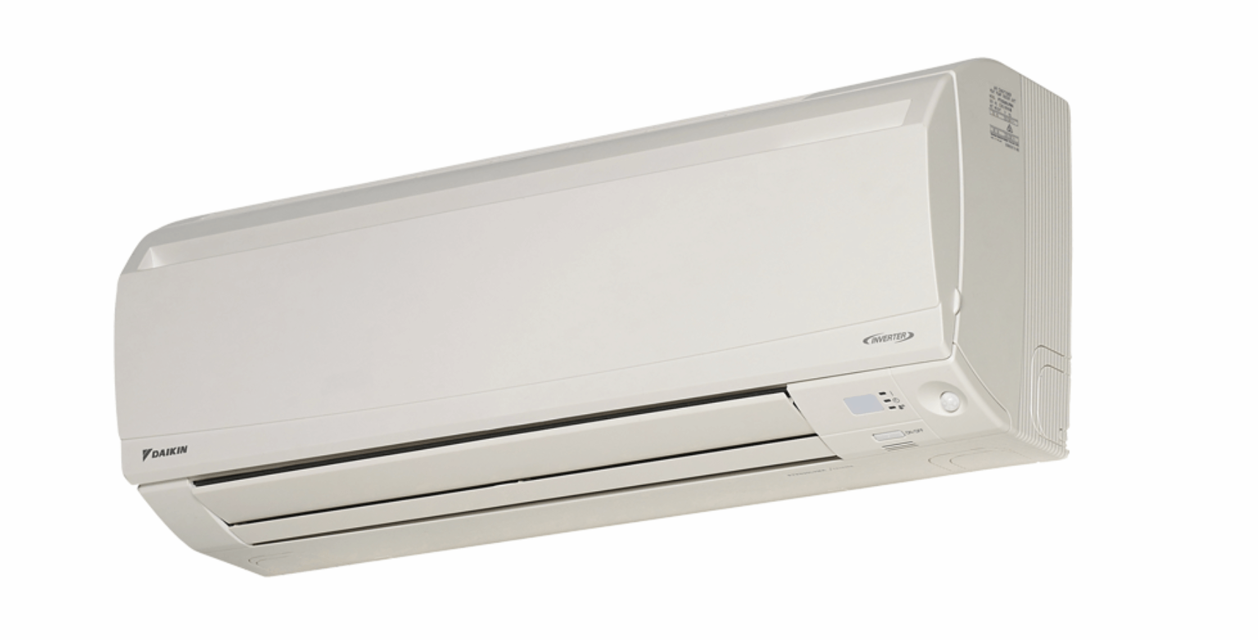

Daikin Air Conditioner FTXS60LVMA

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FTXS60LVMA

Integrate maintenance plans directly into your work orders in MaintainX.

2 Weekly Air Filter Cleaning

Warning: Do not touch the aluminum fins by bare hand at the time of dismounting or mounting the filter

Open the front panel

Pull out the air filters

Clean the air filters with water or vacuum cleaner

If dust does not come off easily, wash the air filters with neutral detergent thinned with lukewarm water

Remove the titanium apatite photocatalytic air-purifying filter

Set the filters as they were and close the front panel

Sign off on the air filter cleaning

Run this procedure

Front Panel Cleaning

CAUTION: When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully

CAUTION: When removing or attaching the front panel, support the panel securely with hand to prevent it from falling

CAUTION: After cleaning, make sure that the front panel is securely fixed

Is the front panel bothered by dirt?

If the front panel is dirty, proceed with the following steps

Remove the front panel

Did you open the front panel?

Did you slide the front panel to either the left or right and pull it toward you?

Did you disconnect the front panel shaft on the other side in the same manner?

Run this procedure

1 Yearly Battery Replacement

Warning: Always replace batteries with the same type and replace both old batteries together

Batteries replaced?

System used for a long time without batteries?

Type of new batteries used

Note: The attached batteries are provided for the initial use of the system

Sign off on the battery replacement

Run this procedure

Air Conditioner Cleaning

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Is the circuit breaker turned off?

Is the operation stopped?

Upload a photo of the indoor unit before cleaning

Upload a photo of the outdoor unit before cleaning

Upload a photo of the remote controller before cleaning

Clean the indoor unit with a soft cloth soaked in water

Clean the outdoor unit with a soft cloth soaked in water

Run this procedure

6 Monthly Air-Purifying Filter Maintenance

Warning: The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Open the front panel and pull out the air filters

Hold the recessed parts of the frame and unhook the 4 claws

Vacuum dusts, and soak in lukewarm water or water for about 10 to 15 minutes if dirt is heavy

Do not remove the filter from frame when washing with water

After washing, shake off remaining water and dry in the shade

Since the material is made out of polyester, do not wring out the filter when removing water from it

Remove the tabs on the filter frame and replace with a new filter

Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite photocatalytic air-purifying filter

Run this procedure
