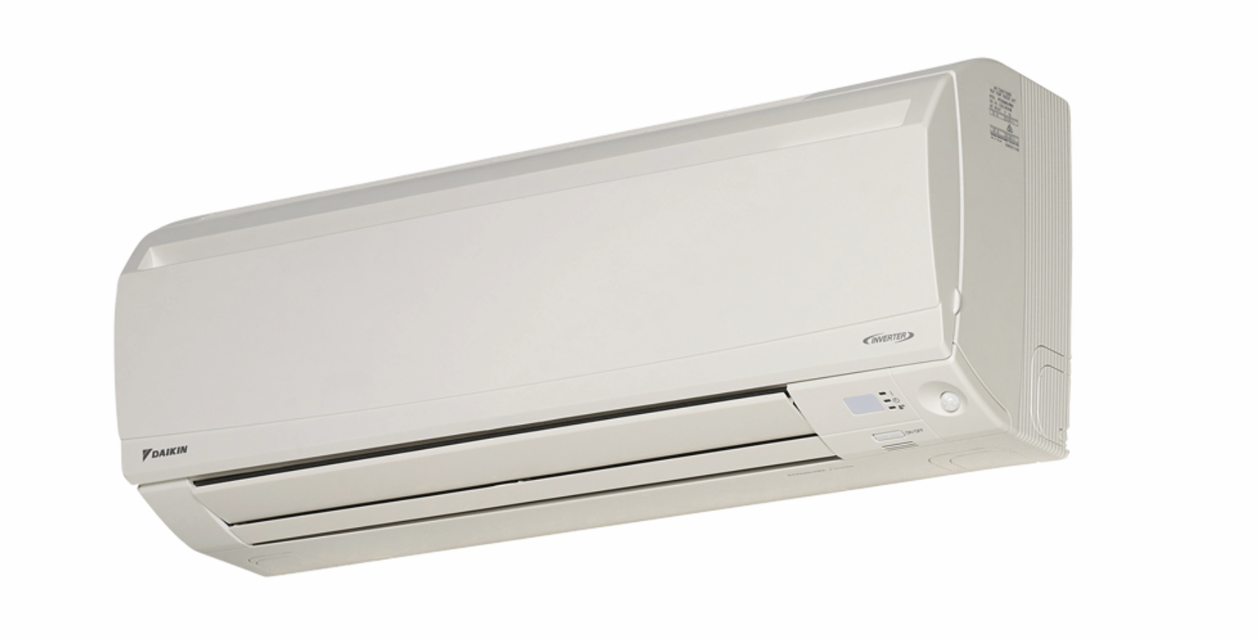

Daikin Air Conditioner FTXS50LVMA

Warning: Do not touch the aluminum fins by bare hand at the time of dismounting or mounting the filter

Push a little upwards the filter tab at the center of each air filter, then pull it down

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily:

Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade

Be sure to remove the titanium apatite photocatalytic air-purifying filter

Set the filters as they were and close the front panel

CAUTION: When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully

CAUTION: When removing or attaching the front panel, support the panel securely with hand to prevent it from falling

If front panel is not dirty, skip the cleaning procedure

Hold the front panel by the panel tabs on the 2 sides and open it

Press the front panel at both sides and the center to close it

Remove the front panel by sliding it to either the left or right and pulling it toward you

Clean the front panel with a soft cloth soaked in water and neutral detergent

If washed with water, dry it up in the shade after washing

Warning: Always replace both batteries together with the same type

System not used for a long time and batteries taken out?

Remote controller display begins to fade?

Degradation of reception performance occurs?

Sign off on the battery replacement

Warning: The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Open the front panel and pull out the air filters

Hold the recessed parts of the frame and unhook the 4 claws

Vacuum dusts, and soak in lukewarm water or water for about 10 to 15 minutes if dirt is heavy

After washing, shake off remaining water and dry in the shade

Remove the tabs on the filter frame and replace with a new filter

Set the filters as they were and close the front panel

NOTE: Operation with dirty filters: cannot deodorize the air, cannot clean the air, results in poor cooling, may cause odour.

Sign off on the filter maintenance

Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded

Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit

Check that the drain comes smoothly out of the drain hose during COOL or DRY operation

If no drain water is seen, is water leaking from the indoor unit?

Operate the FAN only for several hours on a nice day to dry out the inside

After operation stops, turn off the breaker for the room air conditioner

Clean the air filters and set them again

Take out batteries from the remote controller
