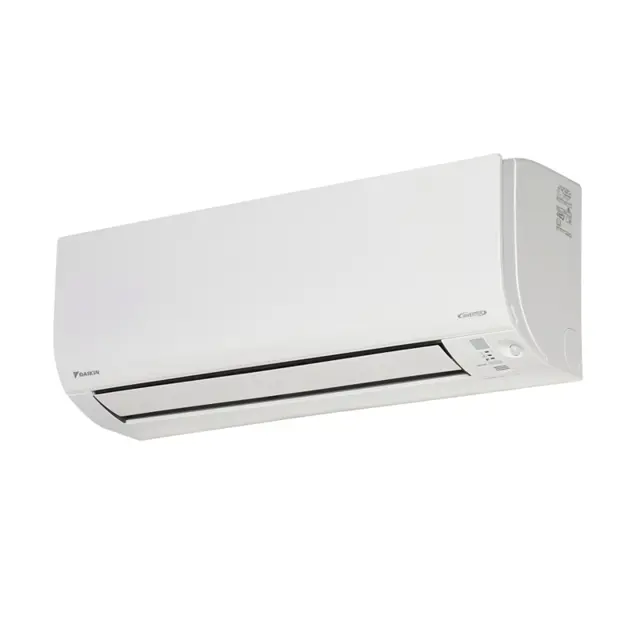

Daikin Air Conditioner FTXS50KAVMA

CAUTION: When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully

CAUTION: When removing or attaching the front panel, support the panel securely with hand to prevent it from falling

CAUTION: After cleaning, make sure that the front panel is securely fixed

Is the front panel bothered by dirt?

If yes, hold the front panel by the panel tabs on the 2 sides and open it

Press the front panel at both sides and the center to close it

Wipe it with soft cloth soaked in water

Remove the front panel by opening it and sliding it to either the left or right and pulling it toward you

Disconnect the front panel shaft on the other side in the same manner

Warning: Use batteries of the same type and replace the 2 old batteries together

If the system is not used for a long time, take the batteries out

The batteries will last for approx. 1 year. If the remote controller display begins to fade and the degradation of reception performance occurs within a year, replace both 2 batteries with new, size AAA.LR03 (alkaline)

Batteries replaced with new, size AAA.LR03 (alkaline)?

The attached batteries are provided for the initial use of the system. The usable period of the batteries may be short depending on the manufactured date of the air conditioner

Sign off on the battery replacement

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Hold the recessed parts of the frame and unhook the 4 claws

Vacuum dusts, and soak in lukewarm water or water for about 10 to 15 minutes if dirt is heavy

After washing, shake off remaining water and dry in the shade

Remove the tabs on the filter frame and replace with a new filter

Set the filters as they were and close the front panel

Note any issues found during the maintenance

Sign off on the air conditioner filter maintenance

CAUTION: Before cleaning, be sure to stop the operation and turn the breaker off

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Is the remote controller clean?

For cleaning, do not use the materials as follows: Hot water above 40°C, Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff

Sign off on the air conditioner units cleaning

Warning: Do not touch the aluminum fins by bare hand at the time of dismounting or mounting the filter

Push a little upwards the filter tab at the center of each air filter, then pull it down

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily:

Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade

Be sure to remove the titanium apatite photocatalytic air-purifying filter

Set the filters as they were and close the front panel

Sign off on the air filter cleaning
