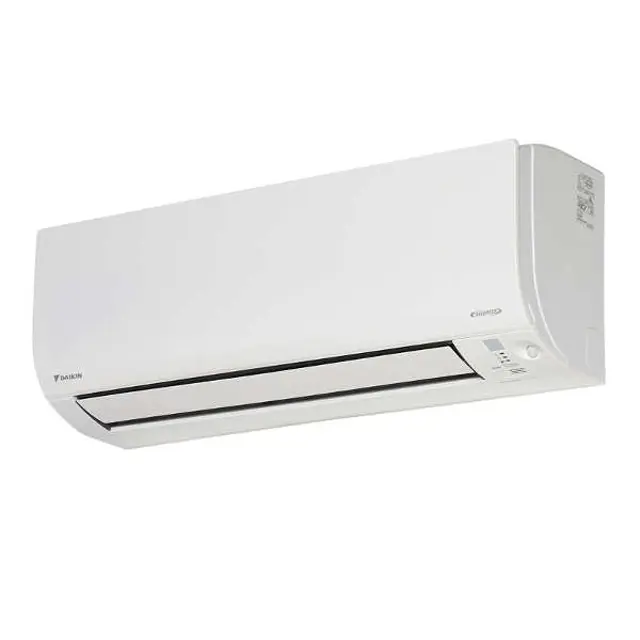

Daikin Air Conditioner FTXM95PVMA

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Insert titanium apatite deodorizing filter securely under the tabs

Open the front panel and pull out the air filters

Take off titanium apatite deodorizing filter

Hold the recessed parts of the frame and unhook the 4 claws

Remove the filters from the tabs

Clean or replace titanium apatite deodorizing filter

Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

Warning: To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time

Both batteries replaced at the same time with new size AAA.LR03 (alkaline) batteries?

Is the LCD blinking as an alert that the batteries need replacing?

Note: In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking

The batteries supplied with the remote controller are for initial operation. The batteries may run out in less than 1 year. Have they been replaced?

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

For cleaning, do not use any of the following

Only neutral detergent may be used

Sign off on the cleaning procedure

Clean Air Conditioner Air Filter

Open the front panel: Hold the front panel by the sides and open it

Pull out the air filters: Push the filter tab at the centre of each air filter a little upwards, then pull it down

Wash the air filters with water or clean them with vacuum cleaner

It is recommended to clean the air filters every 2 weeks

If the dust does not come off easily: Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade

Close the front panel slowly: Press the panel at both sides and the centre

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Clean Indoor unit, Outdoor unit and Remote controller if bothered by dirt

For cleaning, do not use the materials as follows: Hot water above 40°C, Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff

Operate the FAN mode for several hours on a fine day to dry out the inside

Press ON/OFF and start the operation

After operation stops, turn off the circuit breaker for the room air conditioner
