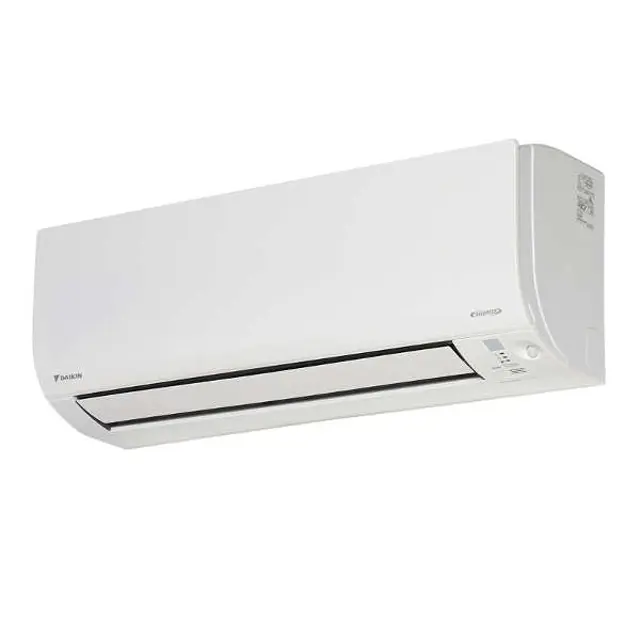

Daikin Air Conditioner FTXM50QVMA

CAUTION: When removing or attaching the front panel, stand on a solid, stable base and take care not to fall. Support the panel securely with your hand to prevent it from falling.

If front panel is not dirty, skip to step 8.

Front panel opened successfully?

Front panel removed successfully?

Front panel cleaned successfully?

Front panel dried successfully?

Front panel attached successfully?

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Clean Indoor unit, Outdoor unit and Remote controller if bothered by dirt

For cleaning, do not use the materials as follows: Hot water above 40°C, Volatile liquid such as benzene, petrol and thinner, Polishing compound, Rough materials such as a scrubbing brush

Prior to a long period of non-use:

Operate the FAN mode for several hours on a fine day to dry out the inside

Press ON/OFF and start the operation

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Take off the titanium apatite photocatalytic air-purifying filters

Remove the filters from the tabs by remove 6 points of hook

Clean or replace the titanium apatite photocatalytic air-purifying filters

Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

After washing, shake off remaining water and let them dry in the shade

Remove the filter from the filter frame and prepare a new one

Set the titanium apatite photocatalytic air-purifying filters as they were

Warning: Always replace both batteries together using the same type

Note: Initial batteries may run out in less than 1 year

Sign off on the battery replacement

Warning: Ensure the air conditioner is turned off before starting the cleaning process

Upload a photo of the pulled out air filters

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily

Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade

Remove the titanium apatite photocatalytic air-purifying filter
