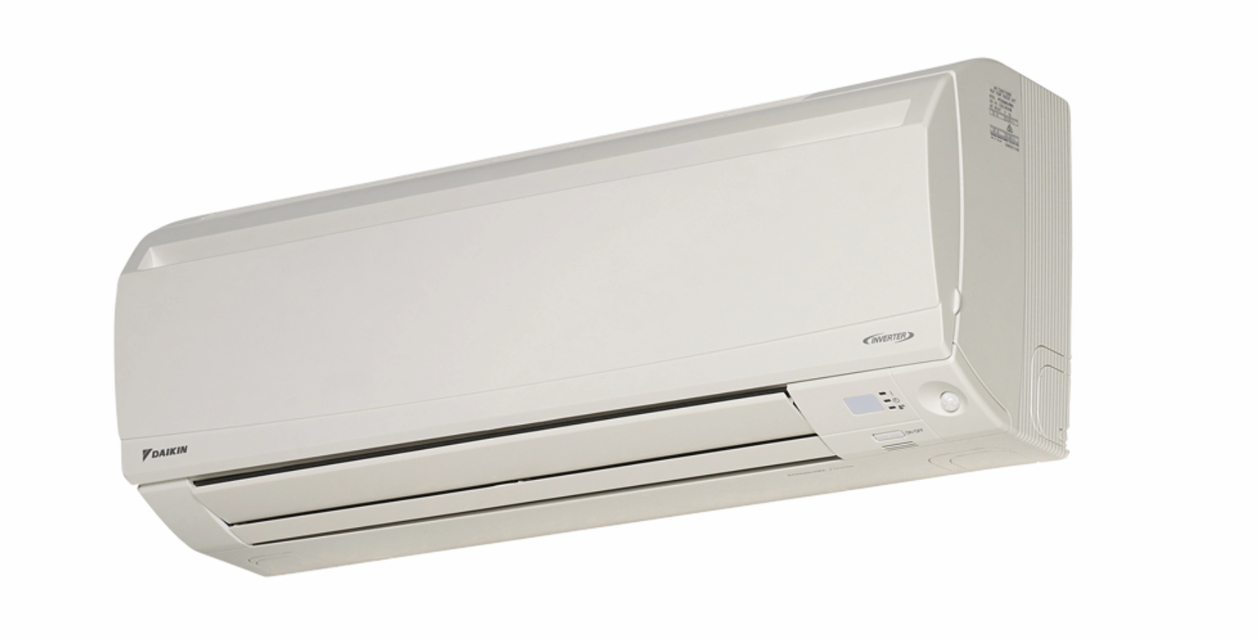

Daikin Air Conditioner FTXM20QVMA

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Is the operation stopped and circuit breaker turned off?

Is the remote controller clean?

For cleaning, do not use the materials as follows: Hot water above 40°C, Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff

Sign off on the air conditioner cleaning

Warning: Do not touch the aluminum fins by bare hand at the time of dismounting or mounting the filter

Clean the air filters with water or vacuum cleaner

If dust does not come off easily, wash the air filters with neutral detergent thinned with lukewarm water

Remove the titanium apatite photocatalytic air-purifying filter

Set the filters as they were and close the front panel

Sign off on the air filter cleaning

Warning: Always replace batteries with the same type and replace both old batteries together

If the system is not used for a long time, take the batteries out

The batteries will last for approx. 1 year. If the remote controller display begins to fade and the degradation of reception performance occurs within a year, replace both 2 batteries

Batteries replaced within a year?

The attached batteries are provided for the initial use of the system. The usable period of the batteries may be short depending on the manufactured date of the air conditioner

Sign off on the battery replacement

CAUTION: When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully

CAUTION: When removing or attaching the front panel, support the panel securely with hand to prevent it from falling

CAUTION: After cleaning, make sure that the front panel is securely fixed

If front panel is not dirty, skip the cleaning procedure

Front panel removed successfully?

Front panel cleaned successfully?

Front panel attached successfully?

Sign off on the front panel cleaning

Warning: The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Open the front panel and pull out the air filters

Hold the recessed parts of the frame and unhook the 4 claws

Vacuum dusts, and soak in lukewarm water or water for about 10 to 15 minutes if dirt is heavy

After washing, shake off remaining water and dry in the shade

Remove the tabs on the filter frame and replace with a new filter

Set the filters as they were and close the front panel

NOTE: Operation with dirty filters: cannot deodorize the air, cannot clean the air, results in poor cooling, may cause odour.

Sign off on the filter maintenance
