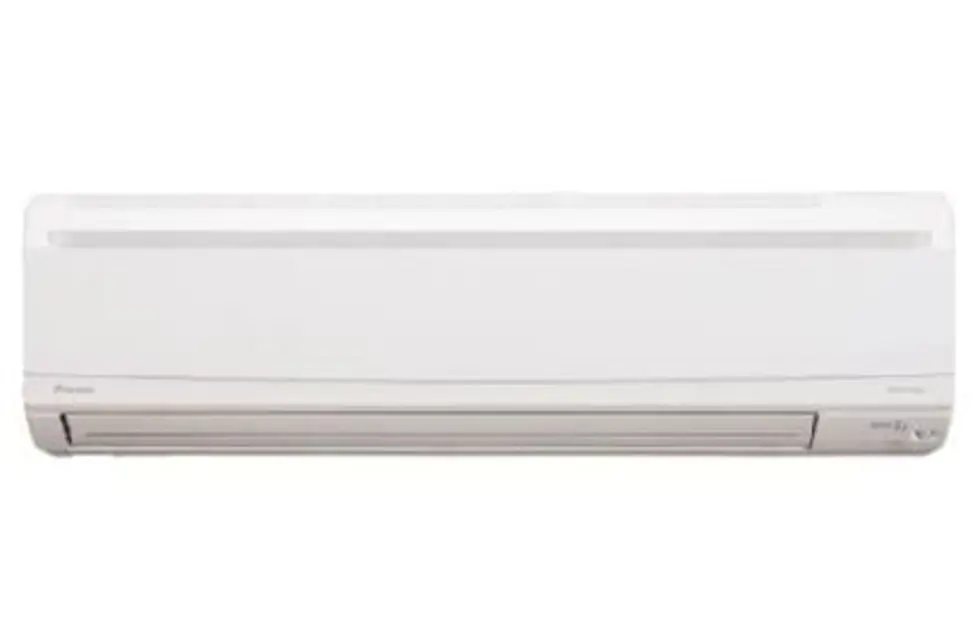

Daikin Air Conditioner CTXS12HVJU

- Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded

- Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit

Check that the drain comes smoothly out of the drain hose during COOL or DRY operation

- If no drain water is seen, water may be leaking from the indoor unit. Stop operation and consult the service shop if this is the case

1. Operate the FAN only for several hours on a nice day to dry out the inside

• Press MODE and select FAN operation

• Press ON/OFF and start operation

2. After operation stops, turn off the breaker for the room air conditioner

CAUTION: Do not touch the aluminum fins by bare hand at the time of dismounting or mounting the filter

Take off the air-purifying filter with photocatalytic deodorizing function

Set the air filter and the air-purifying filter with photocatalytic deodorizing function as they were and close the front panel

Sign off on the air conditioner filter cleaning

Air filters removed from the air conditioner

Air filters cleaned with water or vacuum cleaner

Was it necessary to use neutral detergent thinned with lukewarm water?

Air filters dried up in the shade

Air filters reinstalled in the air conditioner

Sign off on the air filter cleaning

- Clean the Air Conditioner units

CAUTION: Before cleaning, be sure to stop the operation and turn the breaker off

- Clean Indoor unit, outdoor unit and remote controller, wipe them with a soft cloth when dirty

• Hold the front panel by the panel tabs on the both sides and open it

• Slide the front panel to either the left or right and pulling it toward you

This will disconnect the rotation dowel on one side

Warning: Handle filters with care. They are made out of paper and can be easily damaged.

Soak filter in warm water for 10 to 15 minutes if dirt is heavy

Do not remove filter from frame when washing with water

Shake off remaining water and dry filter in the shade

Do not wring out the filter when removing water from it

Remove the tabs on the filter frame and replace with a new filter

Dispose of the old filters as flammable waste

Operation with dirty filters: 1) cannot deodorize the air 2) cannot clean the air 3) results in poor heating or cooling 4) may cause odor
