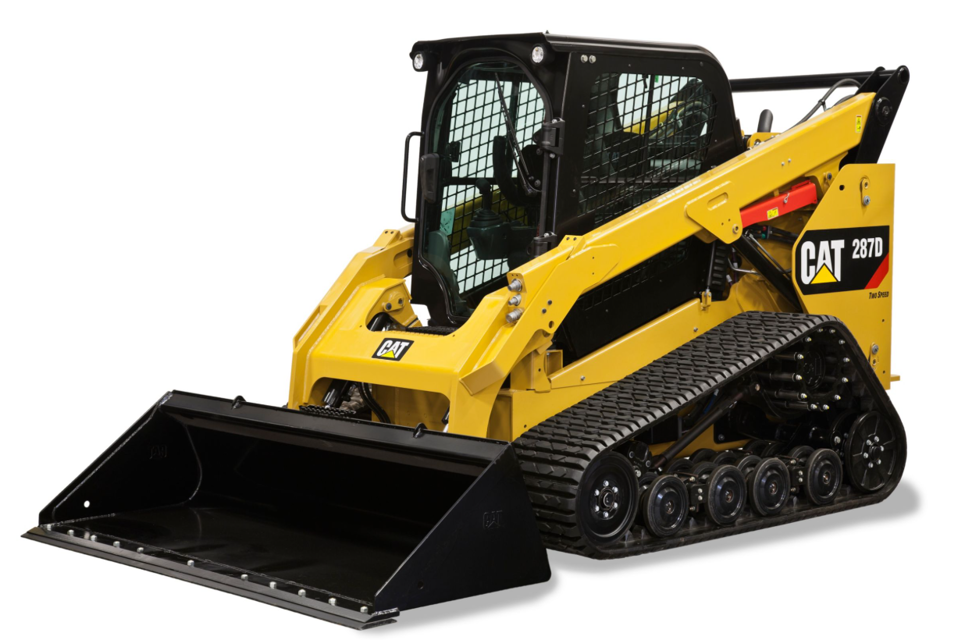

CAT Skid Steer Loader 287D

1. Stop the engine to replace belt.

2. Open the engine access door. Refer to Operation and Maintenance Manual, Access Doors and Covers.

3. Loosen the quarter-turn fasteners (1) on the front of the belt protection guard, and remove guard to access belt.

4. Loosen the mounting bolt and adjusting bolt, decrease tension in belt.

6. Install new belt. Be sure that the belt is fully seated on the pulleys.

7. Move the alternator until the correct tension 534 ± 22 N·m (120 ± 5 lb) is reached.

Note: A 144-0235 Borroughs Belt Tension Gauge may be used to measure belt tension. This measurement should be taken between the alternator pulley and the crankshaft pulley.

Cooling System Coolant Sample (Level 2) - Obtain

NOTICE: Always use a designated pump for oil sampling, and use a separate designated pump for coolant sampling. Using the same pump for both types of samples may contaminate the samples that are being drawn. This contaminate may cause a false analysis and an incorrect interpretation that could lead to concerns by both dealers and customers.

Refer to the Operation and Maintenance Manual,

“Access Doors and Covers” for the location of the service points.

Warning: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

Obtain the sample of the coolant from the radiator. When the system is cool, slowly remove the radiator cap (2).

Note: Do not take the sample from the Coolant Overflow Reservoir.

Obtain the sample of the coolant as close as possible to the recommended sampling interval. Supplies for collecting samples can be obtained from your Cat dealer. Refer to Operation and Maintenance Manual, “Cooling System Coolant Sample (Level 1) - Obtain” for the guidelines for proper sampling of the coolant.

Submit the sample for Level 2 analysis.

Is the date of installation label present?

If the date of installation label is missing, replace belt within 3 years from the year of manufacture

Year of manufacture as indicated on belt webbing label, buckle housing, or installation tags

Consult your Cat dealer for the replacement of the seat belt and the mounting hardware

Does the age of new seat belt exceed install by date on label?

Complete seat belt system should be installed with new mounting hardware

Warning: Fingers can be burned from hot pins and bushings.

The pins and bushings in a dry joint can become very hot. It is possible to burn the fingers if there is more than brief contact with these components.

Use the recommendations to extend the life of the undercarriage. Use the recommendations to avoid excessive downtime.

During the machine operation, listen for unusual squeaking and for unusual squealing. This noise can indicate a dry joint.

Check the machine for dry joints weekly. Check for dry joints immediately after machine operation.

After machine operation, lightly touch the end of each track pin or bushing. Touch the track pin or the track bushing with the back of your hand. Make a mark on any dry track pin joint that is hot to the touch.

Consult the Custom Track Service expert at any Cat dealer if you detect dry joints or leaks. The Custom Track Service expert at the Cat dealer can perform track inspection.

Sign off on the 50 Hourly Skid Steer Loader Maintenance

Note: All models except for 226D, 232D, 239D, and 249D.

Open the engine access door. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

The release latch for the guard is located on the rear of the radiator. Pull the rubber T-handle down to release the guard. Tilt the guard upward.

To raise the radiator, remove the two bolts.

Raise the radiator. As the radiator raises, the latch will move (1).

Raise the radiator until the latch moves over the catch pin (2).

To lower the radiator downward, push up on the radiator. Move the latch to unlatch the lock. Lower the radiator.

Install the two bolts to secure the radiator.

To lower the radiator guard, move the support rod to the storage position and lower the guard.
