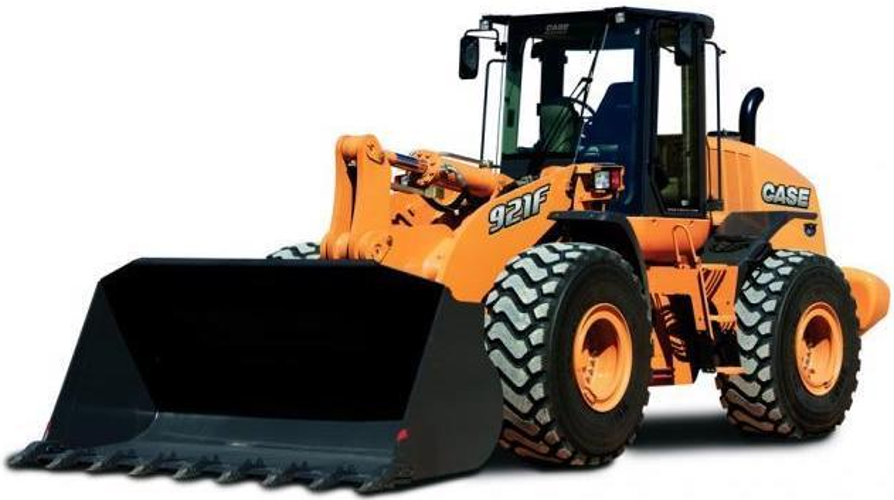

Case Wheel Loader 921F

DANGER: Crushing hazard! If you service the machine with the loader lift arms raised, always use the support strut. Failure to comply will result in death or serious injury.

Removed the retaining pin and placed the support strut onto the cylinder rod?

Installed the retaining pin into the support strut?

Lowered the lift arms onto the support strut?

Emptied the loader bucket and raised the loader lift arms to approximated 2.1 m (7 ft.) and stopped the engine?

Removed the support strut from the storage position by removing the retaining bolt?

Placed the support strut onto the cylinder rod with guide lock tab on top of cylinder and pointing toward the bucket?

Installed the retaining bolt entirely into the support strut using all threads?

Slowly lowered the lift arms onto the support strut?

WARNING: Roll-over hazard! Securely fasten the seat belt. Your machine is equipped with a Roll-Over Protective Structure (ROPS) cab, ROPS canopy, or ROPS frame for your protection. The seat belt can help ensure your safety If it is properly used and maintained. Never wear a seat belt loosely or with slack in the belt system. Failure to comply could result in death or serious injury.

Insert the metal end of the right-hand belt strap into the latch mechanism on the left-hand side of the seat.

Tighten the seat belt by pulling on the loose end of the right-hand seat belt.

To unlatch the seat belt, press the red button on the left-hand side mechanism.

Sign off on the seat belt maintenance

Warning: Lock the articulation transport service link before any maintenance, service work or transportation.

Service link moved into the locked position

Sign off on the wheel loader maintenance
