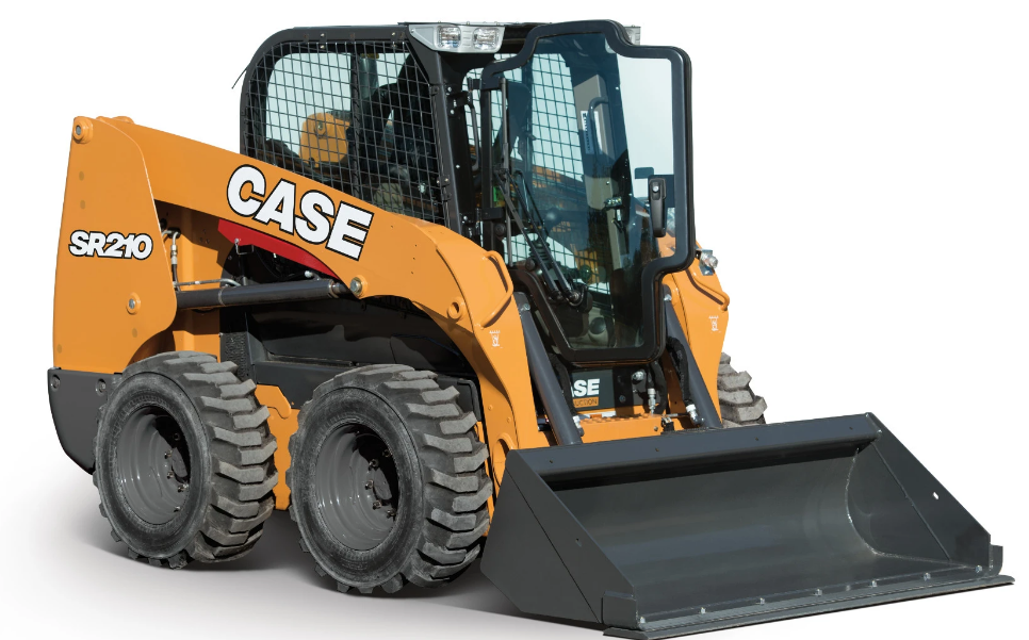

Case Skid Steer Loader SR210

NOTE: An instructional decal on the inside of the righthand loader arm, just above the support strut is also available. Understand the loader arm lock procedure before continuing.

Sit in the operator's seat, fasten the seat belt, pull down the restraint bar down, and start the engine.

Press the OPERATE button to enable the hydraulics.

Remove the bucket or attachment from the mounting plate.

Park the machine on firm and level surface.

If an assistant is not available, turn off the engine and exit the machine.

Remove the support strut pin (A) and let the support strut (B) rest on the lift cylinder barrel (C).

Slowly raise the loader arm until the support strut (B) falls onto the cylinder rod (D).

Remove the two, rear retaining nuts, located at the rear of the cab

Pull on the hand holds at the front of the machine until the cab is completely tilted forward

Confirm that the red lock tube has lowered over the cab pivot linkage. If it has the cab tilt position is now secure

Sign off on the cab forward maintenance
