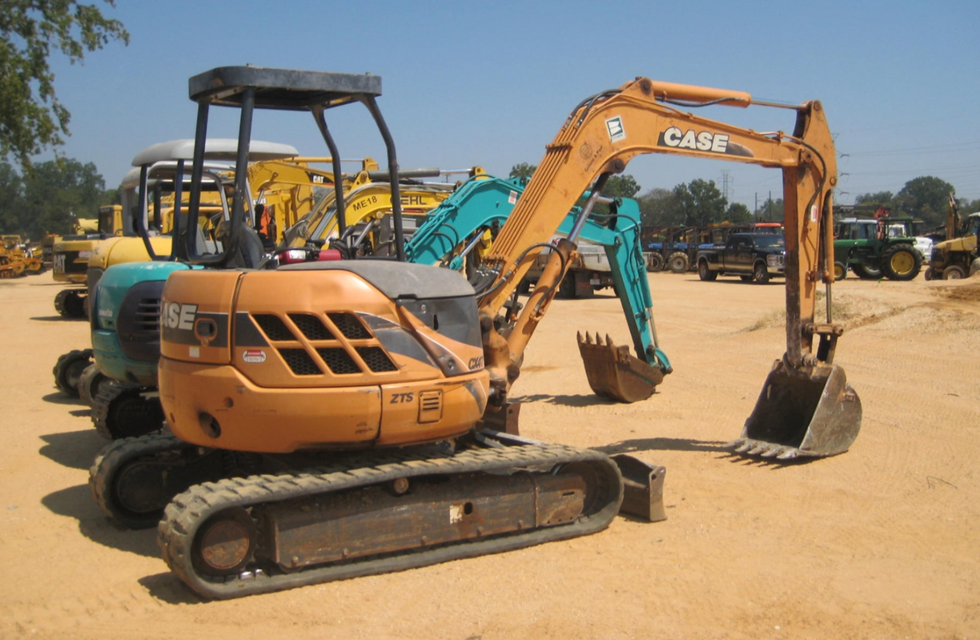

Case Mini Excavator CX47

Create an account to install this asset package.

Maintenance Plans for Case Mini Excavator Model CX47

Integrate maintenance plans directly into your work orders in MaintainX.

Hydraulic Equipment Removal

Hydraulic pressure of the system released

Return side cover opened and filter taken out

Oil of the removed pipes drained into a container without spilling

Plugs or caps applied on the pipe ends

External surface of the equipment cleaned before disassembling

Hydraulic and gear oil drained before placing equipment on the workbench

Run this procedure

Hydraulic Equipment Inspection

1) Ensure that the disassembled parts are free from seizure, interference and uneven contact.

2) Measure and record wear condition of parts and clearance.

3) If the problem is found in a part, repair or replace it with a new one.

Run this procedure

Electrical Equipment Maintenance

Do not disassemble electrical equipment.

Handle it carefully not to drop and give a shock.

Turn the key OFF prior to connecting and disconnecting work.

Disconnect the connector by holding it and pressing the lock. Do not pull the wire to apply force to the caulking portion.

Connect the connector and ensure it is completely locked.

Turn the key OFF prior to touching the terminal of starter or generator.

Remove the ground (earth} terminal of battery when handling tools around the battery or its relay.

Do not splash water on the electrical equipment and connectors during machine washing.

Check for moisture adhesion inside the waterproof connector after pulling it out, since it is hard to remove moisture from the connector. If moisture adhesion is found, dry it completely before the connection.

Run this procedure

Hydraulic Equipment Maintenance

Warning: Do not disassemble, reassemble or modify the hydraulic equipment without the permission of the manufacturer.

If disassembling and reassembling is unavoidable, refer the work to qualified personnel.

Matching marks provided for reassembling work?

Before starting the work, read the manual of disassembling procedure.

Can the work be performed by yourself?

Special jig and tools used if specified?

If it is hard to remove a part according to the procedure, do not try it by force but investigate the cause.

Removed parts placed in order and tagged for reassembling?

Note the location and quantity of parts commonly applied to multiple locations.

Run this procedure
