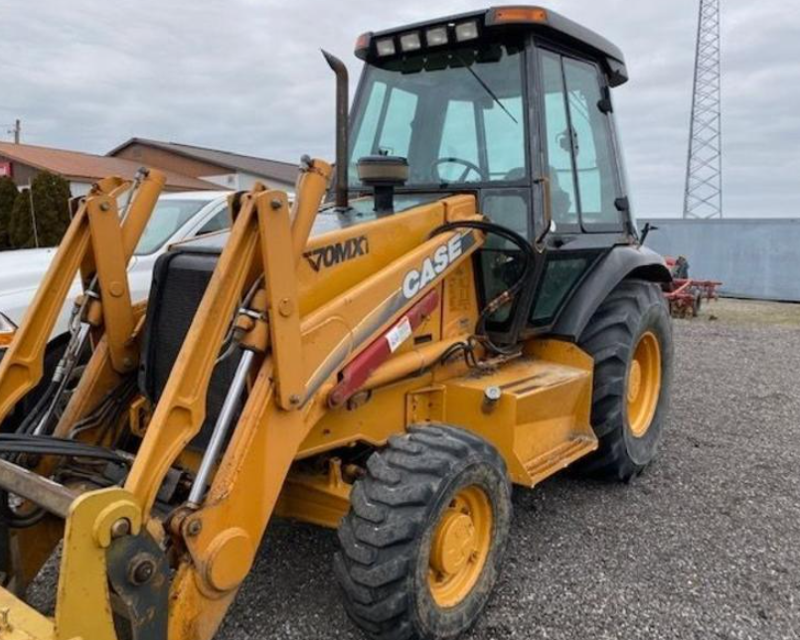

Case Loader Landscaper 570MXT

Create an account to install this asset package.

Maintenance Plans for Case Loader Landscaper Model 570MXT

Integrate maintenance plans directly into your work orders in MaintainX.

Radiator Removal

Put identification tags on all disconnected hoses and wires. Close disconnected hoses and fittings with caps and plugs.

NOTE: The photos in this procedure may be different from your machine and are for reference only.

Park the machine on a level surface. Raise the loader and lock the support strut (1) to hold the loader. Stop the engine and apply the parking brake.

Remove the bolts (1 ), bumpers (2), and the grille (3) from the front of the machine.

Open the hood. Connect acceptable lifting equipment to the hood.

Do the following procedure to remove the hood. A. Remove the retainers from the hood struts (1) and disconnect the hood struts from the stud. B. Disconnect the hood cable (2) from the radiator shroud. C. Carefully lower the hood back to the closed position.

Remove the bolts, washers, and nuts from the pivot point on the hood.

Drive the pivot tubes out of the hood pivot point. Remove the hood from the machine.

Slowly remove the radiator cap. Install a hose on the drain valve and drain the radiator into a clean container that holds approximately 17 litres (18 U.S. quarts).

Run this procedure

Engine Removal

Put identification tags on all disconnected hoses and wires. Close disconnected hoses and fittings with caps and plugs.

NOTE: The photos in this procedure may be different from your machine and are for reference only.

Park the machine on a level surface. Raise the loader and lock the support strut to hold the loader.

Remove the battery cover from the right step. If the machine has only one battery, disconnect the negative battery cable from the battery.

If the machine has two batteries, remove the terminal nuts (1 ). Remove the jumper cable (2) from the batteries. Remove the negative ground strap (3) from the battery.

Drain the oil from the hydraulic reservoir.

If the machine is equipped with air conditioning. See Section 9004 and recover the coolant from the air conditioning system.

Remove the bolts (1 ), bumpers (2), and the grille (3) from the front of the machine.

Remove the bolts, washers, and nuts from the pivot point on the hood.

Run this procedure
